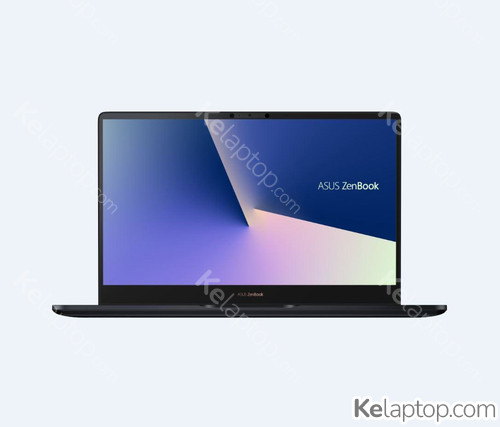

ASUS Zenbook Pro 14 UX480FD-78D05AB1
Specs
Prices
Main specs
| Processor | Intel Core i7-8565U 1,8GHz |
|---|---|
| Screen | 14" 1920x1080 |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 |
| Graphics card | NVIDIA GeForce GTX 1050 Max-Q GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
- 1
Acer Aspire Go 15 AG15-72P-54UU
€699.91046 - 2
Lenovo IdeaPad Slim 3 15ABR8 82XM01DGFR
€699.991045 - 3
Acer Aspire Go 15 AG15-42P-R40H
€699.981044 - 4
Lenovo IdeaPad Slim 3 15AMN8 82XQ01UBFR
€659.991042 - 5
DELL Latitude 7000 7420 341D1
€629.11042 - 6
Lenovo V15 G5 IRL 83GW0088FR
€649.91041 - 7
Lenovo V15 G5 IRL 83GW0088SP
€6991041 - 8
Lenovo IdeaPad Slim 3 15AMN8 82XQ01JNFR
€621.991041
Full specifications of ASUS Zenbook Pro 14 UX480FD-78D05AB1
| Reference / Part Number | UX480FD-78D05AB1 |
|---|---|
| Release date | April 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8565U |
| Processor frequency | 1,8 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor boost frequency | 4,6 GHz |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 Max-Q |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Discrete graphics memory type | GDDR5 |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ScreenPad |
Software
| Operating system installed | Windows 10 |
|---|
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 149091 |
Battery
| Battery capacity | 70 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery life (max) | 12,5 h |
Power
| AC adapter power | 90 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 7,7 A |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Weight | 1,6 kg |
|---|---|
| Width | 323 mm |
| Depth | 225 mm |
| Height | 17,9 mm |
Frequently asked questions
Is the ASUS Zenbook Pro 14 UX480FD-78D05AB1 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1050 Max-Q. Its card's page shows what level it handles current games at.
How long does the battery of the ASUS Zenbook Pro 14 UX480FD-78D05AB1 last?
The manufacturer declares up to 12,5 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the ASUS Zenbook Pro 14 UX480FD-78D05AB1 like?
It carries a 14" 1920x1080 display.
Which processor and graphics card does the ASUS Zenbook Pro 14 UX480FD-78D05AB1 have?
It runs on the Intel Core i7-8565U processor with the NVIDIA GeForce GTX 1050 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook Pro 14 UX480FD-78D05AB1 come with?
It comes with Windows 10 preinstalled.
Which ports does the ASUS Zenbook Pro 14 UX480FD-78D05AB1 have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
How much does the ASUS Zenbook Pro 14 UX480FD-78D05AB1 weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Zenbook Pro 14 UX480FD-78D05AB1 released?
Its release date is April 2020, 6 years ago.
