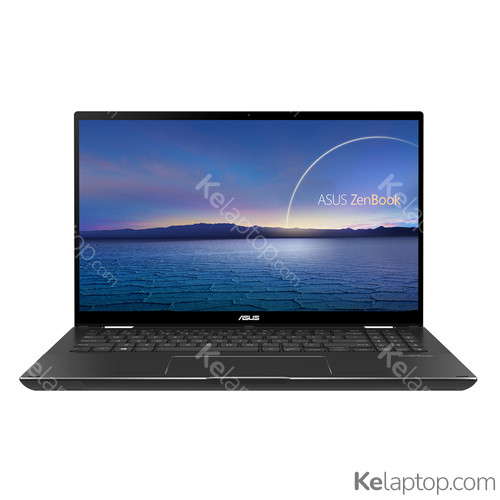

ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 IPS 300 nits 100% sRGB |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce GTX 1650 Max-Q 4GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W
| Reference / Part Number | UX564PH-EZ018W-W |
|---|---|
| Also sold as | UX564PH-EZ018W-CASE, 90NB0UD1-M00650 |
| Release date | October 2021, 5 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Grey |
| Form factor | Convertible (Folder) |
| Colour name | Mineral Grey |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-11370H |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor boost frequency | 4,8 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 3,3 GHz |
| Configurable TDP-up | 35 W |
| Configurable TDP-down | 28 W |
| Configurable TDP-down frequency | 3 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 Max-Q |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Speakers manufacturer | Harman Kardon |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Thunderbolt technology | Yes |
| HDMI version | 2.0b |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 96 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
Power
| AC adapter power | 120 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
Security
| Face recognition | Yes |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Weight | 1,9 kg |
|---|---|
| Width | 356 mm |
| Depth | 230,8 mm |
| Height | 19,9 mm |
Frequently asked questions
Is the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1650 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W like?
It carries a 15.6" 1920x1080 IPS 300 nits 100% sRGB display.
Which processor and graphics card does the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W have?
It runs on the Intel Core i7-11370H processor with the NVIDIA GeForce GTX 1650 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W weigh?
It weighs 1,9 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Zenbook Flip 15 UX564PH-EZ018W UX564PH-EZ018W-W released?
Its release date is October 2021, 5 years ago.
