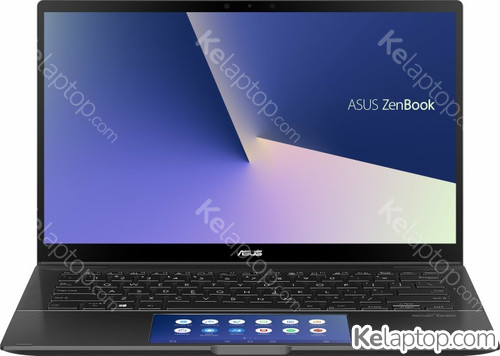

ASUS Zenbook Flip 14 UX463FL-AI097T
Specs
Prices
Main specs
| Processor | Intel Core i7-10510U 1,8GHz |
|---|---|
| Screen | 14" 1920x1080 IPS |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR3-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | |
| Other | Keyboard German. |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS Zenbook Flip 14 UX463FL-AI097T
| Reference / Part Number | 90NB0NY1-M02170 |
|---|---|
| Release date | October 2020, 6 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Grey |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Gloss |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-10510U |
| Processor frequency | 1,8 GHz |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor boost frequency | 4,9 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2,3 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
Audio
| Audio system | SonicMaster Premium |
|---|---|
| Speaker power | 1 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
Performance
| Repairability index | 6.5 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ScreenPad |
| Keyboard layout | QWERTZ |
| Keyboard language | German |
Software
| Operating system installed | Windows 10 Home |
|---|
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
Certificates
| Certification | UL, CE Marking Compliance, FCC Compliance, BSMI, CCC, CB, Energy Star, CECP, Erp 2013, RoHS |
|---|
Weight & dimensions
| Weight | 1,4 kg |
|---|---|
| Width | 320 mm |
| Depth | 206 mm |
| Height | 17,9 mm |
Frequently asked questions
Is the ASUS Zenbook Flip 14 UX463FL-AI097T good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook Flip 14 UX463FL-AI097T like?
It carries a 14" 1920x1080 IPS display.
Which processor and graphics card does the ASUS Zenbook Flip 14 UX463FL-AI097T have?
It runs on the Intel Core i7-10510U processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook Flip 14 UX463FL-AI097T come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS Zenbook Flip 14 UX463FL-AI097T have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Zenbook Flip 14 UX463FL-AI097T have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the ASUS Zenbook Flip 14 UX463FL-AI097T weigh?
It weighs 1,4 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook Flip 14 UX463FL-AI097T released?
Its release date is October 2020, 6 years ago.
