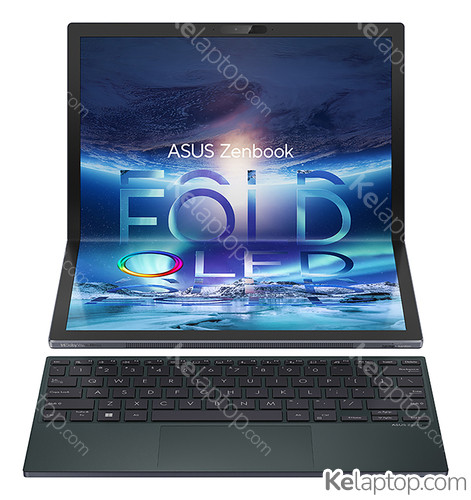

ASUS Zenbook 17 Fold OLED UX9702AA-MD004W
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 17.3" 2560x1920 OLED 60Hz 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
Full specifications of ASUS Zenbook 17 Fold OLED UX9702AA-MD004W
| Reference / Part Number | 90NB0WX1-M00290 |
|---|---|
| Release date | March 2023, 3 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Black |
| Form factor | Convertible (Fold-dual screen) |
| Color name | Tech Black |
| Housing material | Aluminium,Magnesium |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 17.3 " (43,9 cm) |
|---|---|
| Display resolution | 2560 x 1920 pixels |
| Touchscreen | Yes |
| Pantalla plegable | Yes |
| Panel type | OLED |
| Native aspect ratio | 4:3 |
| Display surface | Gloss |
| Maximum display brightness (HDR) | 500 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Display response rise/fall | 0,2 ms |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 500 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1250U |
| Generación del procesador | Intel Core i7-12xxx |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4,7 GHz |
| Núcleos de rendimiento | 2 |
| Núcleos de eficiencia | 8 |
| Frecuencia turbo máxima del núcleo de rendimiento | 4.7 |
| Frecuencia turbo máxima del núcleo de eficiencia | 3.5 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Potencia base del procesador | 9 |
| Potencia turbo máxima | 29 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| Número de puertos Thunderbolt 4 | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 5.9 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days |
Processor special features
| Intel Flex Memory Access | No |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
Security
| Windows Hello | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Aprobaciones reguladoras
| Certificados de conformidad | REACH |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Weight | 3.3 lbs (1,5 kg) |
|---|---|
| Width | 14.9 " (378,5 mm) |
| Depth | 11.3 " (287,6 mm) |
| Height (front) | 0.3 " (8,7 mm) |
| Height (rear) | 0.5 " (1,29 cm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Bag included | Yes |
Frequently asked questions
Is the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W like?
It carries a 17.3" 2560x1920 OLED 60Hz 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W have?
It runs on the Intel Core i7-1250U processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W have?
According to its spec sheet: 2 × Thunderbolt 4, headphone jack (3.5 mm).
Does the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W made of?
Its housing is made of Aluminium,Magnesium.
How much does the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W weigh?
It weighs 1,5 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook 17 Fold OLED UX9702AA-MD004W released?
Its release date is March 2023, 3 years ago.
