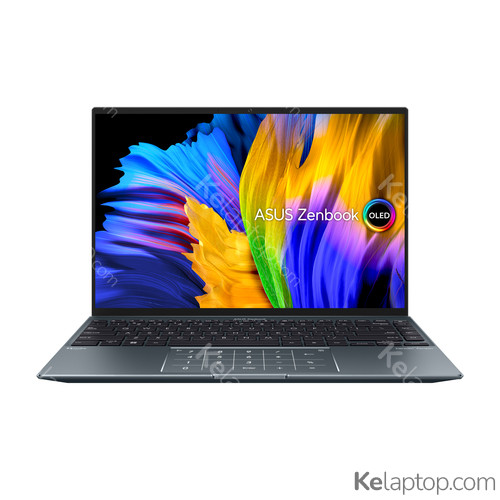

ASUS Zenbook 14X OLED UX5401EA-OLED714
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 2880x1800 OLED 550 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS Zenbook 14X OLED UX5401EA-OLED714
| Reference / Part Number | UX5401EA-OLED714 |
|---|---|
| Release date | June 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Pine Grey |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | No |
| HD type | 2.8K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 550 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1165G7 |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor boost frequency | 4,7 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 2,8 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,2 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Speakers manufacturer | Harman Kardon |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.0b |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 63 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| USB Type-C charging port | Yes |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| AC adapter power | 100 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 5 A |
| AC adapter output voltage | 20 V |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Weight | 1,4 kg |
|---|---|
| Width | 311,2 mm |
| Depth | 221,1 mm |
| Height | 15,9 mm |
Frequently asked questions
Is the ASUS Zenbook 14X OLED UX5401EA-OLED714 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook 14X OLED UX5401EA-OLED714 like?
It carries a 14" 2880x1800 OLED 550 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook 14X OLED UX5401EA-OLED714 have?
It runs on the Intel Core i7-1165G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook 14X OLED UX5401EA-OLED714 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Zenbook 14X OLED UX5401EA-OLED714 have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Zenbook 14X OLED UX5401EA-OLED714 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook 14X OLED UX5401EA-OLED714 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS Zenbook 14X OLED UX5401EA-OLED714 weigh?
It weighs 1,4 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook 14X OLED UX5401EA-OLED714 released?
Its release date is June 2022, 4 years ago.
