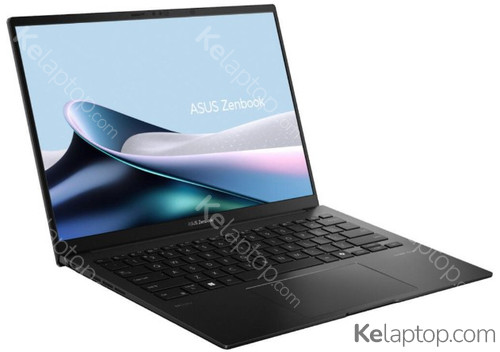

ASUS Zenbook 14 OLED UM3406HA-QD161X
Specs
Prices
Local stores
Main specs
| Processor | AMD Ryzen 7 8840HS 3,3GHz |
|---|---|
| Screen | 14" 1920x1200 OLED 400 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5x-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | |
| Other | Keyboard German. |
Alternatives with equal or higher power at a similar or lower price
Full specifications of ASUS Zenbook 14 OLED UM3406HA-QD161X
| Reference / Part Number | 90NB1271-M009Y0 |
|---|---|
| Release date | August 2024, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Jade Black |
| Housing material | Aluminium |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display bezel technology | NanoEdge |
| Display brightness | 400 cd/m² |
| Display diagonal (metric) | 35,6 cm |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Display response rise/fall | 0,2 ms |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 8840HS |
| Processor frequency | 3,3 GHz |
| Processor generation | AMD Ryzen 8000 Series |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5,1 GHz |
| Processor cache | 24 MB |
| Processor cache type | L2 & L3 |
| L3 cache | 16 MB |
| L2 cache | 8 MB |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon 780M |
| On-board graphics card family | AMD Radeon |
Audio
| Audio system | Smart Amp |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy cover |
| Rear camera | No |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 9.2 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | German |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Trial software | Microsoft 365, McAfee |
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Windows Hello | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Weight & dimensions
| Weight | 1,2 kg |
|---|---|
| Width | 312,4 mm |
| Depth | 220,1 mm |
| Height | 14,9 mm |
Packaging data
| Package width | 75 mm |
|---|---|
| Package depth | 410 mm |
| Package height | 284 mm |
| Package weight | 1,45 kg |
Frequently asked questions
Is the ASUS Zenbook 14 OLED UM3406HA-QD161X good for gaming?
This laptop was not built for gaming: it relies on the integrated AMD Radeon 780M. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook 14 OLED UM3406HA-QD161X like?
It carries a 14" 1920x1200 OLED 400 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook 14 OLED UM3406HA-QD161X have?
It runs on the AMD Ryzen 7 8840HS processor with the AMD Radeon 780M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook 14 OLED UM3406HA-QD161X come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the ASUS Zenbook 14 OLED UM3406HA-QD161X have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS Zenbook 14 OLED UM3406HA-QD161X have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook 14 OLED UM3406HA-QD161X have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS Zenbook 14 OLED UM3406HA-QD161X made of?
Its housing is made of Aluminium.
How much does the ASUS Zenbook 14 OLED UM3406HA-QD161X weigh?
It weighs 1,2 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook 14 OLED UM3406HA-QD161X released?
Its release date is August 2024, 2 years ago.
