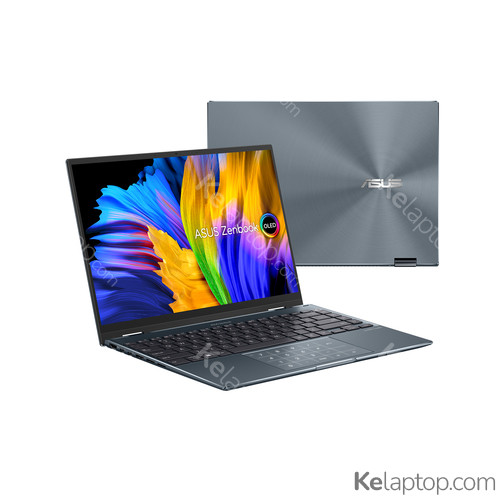

ASUS Zenbook 14 Flip OLED UP5401EA-OLED713
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 2880x1800 OLED 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
Full specifications of ASUS Zenbook 14 Flip OLED UP5401EA-OLED713
| Reference / Part Number | UP5401EA-OLED713 |
|---|---|
| Release date | October 2022, 4 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Grey |
| Form factor | Convertible (Folder) |
| Colour name | Pine Grey |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | WQXGA+ |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1165G7 |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor boost frequency | 4,7 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 2,8 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,2 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe,PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Speakers manufacturer | Harman Kardon |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.0b |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 63 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| USB Type-C charging port | Yes |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| AC adapter power | 100 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 5 A |
| AC adapter output voltage | 20 V |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 1,4 kg |
|---|---|
| Width | 311 mm |
| Depth | 223 mm |
| Height | 15,9 mm |
Frequently asked questions
Is the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 like?
It carries a 14" 2880x1800 OLED 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 have?
It runs on the Intel Core i7-1165G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 weigh?
It weighs 1,4 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook 14 Flip OLED UP5401EA-OLED713 released?
Its release date is October 2022, 4 years ago.
