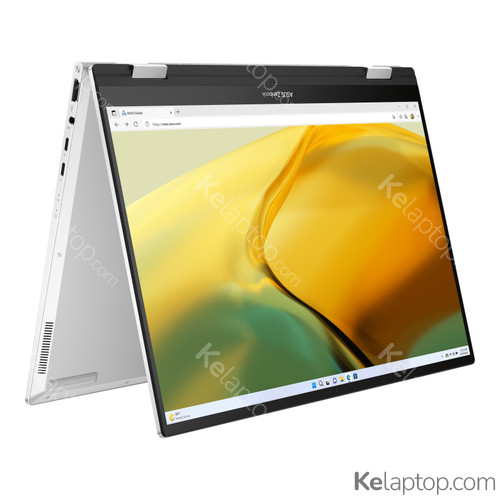

ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890
Specs
Prices
Main specs
| Processor | Intel Core i7-1360P 2,2GHz |
|---|---|
| Screen | 14" 2880x1800 OLED 90Hz 400 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | |
| Other | Keyboard Dutch. |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890
| Reference / Part Number | 90NB10E3-M00890 |
|---|---|
| Release date | July 2023, 3 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Silver |
| Form factor | Convertible (Folder) |
| Colour name | Foggy Silver |
| Housing material | Aluminium |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 3K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 550 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Maximum refresh rate | 90 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1360P |
| Processor frequency | 2,2 GHz |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor cores | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3,7 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 20 W |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory form factor | On-board |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 8 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard layout | QWERTY |
| Keyboard language | Dutch |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Type-C charging port | Yes |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
Security
| Windows Hello | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
Certificates
| Compliance certificates | RoHS,REACH |
|---|
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,5 kg |
|---|---|
| Width | 311,5 mm |
| Depth | 223,4 mm |
| Height | 15,9 mm |
Packaging content
| Bag included | Yes |
|---|---|
| Stylus pen | Yes |
Frequently asked questions
Is the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 like?
It carries a 14" 2880x1800 OLED 90Hz 400 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 have?
It runs on the Intel Core i7-1360P processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 made of?
Its housing is made of Aluminium.
How much does the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 weigh?
It weighs 1,5 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook 14 Flip OLED UP3404VA-KN178X 90NB10E3-M00890 released?
Its release date is July 2023, 3 years ago.
