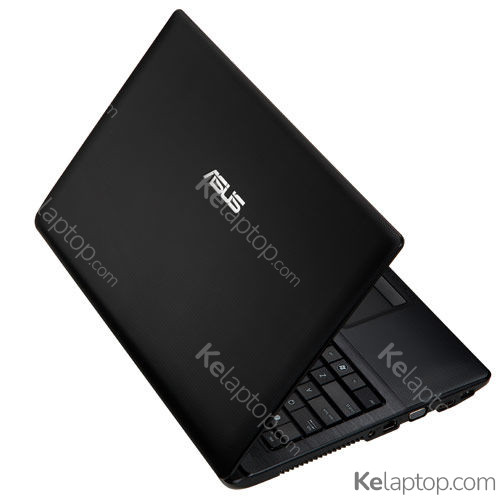

ASUS X54HR-SX336D
Specs
Prices
Main specs
| Processor | Intel Core i3 i3-2370M 2,4GHz |
|---|---|
| Screen | 15.6" 1366x768 |
| Hard drive | 500GB HDD |
| RAM | 4GB DDR3-SDRAM |
| Operating system | No OS installed |
| Graphics card | AMD Radeon HD 7470M 1GB GDDR3 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of ASUS X54HR-SX336D
| Reference / Part Number | X54HR-SX336D |
|---|---|
| Release date | August 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i3 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i3-2370M |
| Processor frequency | 2,4 GHz |
| Processor generation | 2nd gen Intel® Core™ i3 |
| Processor cores | 2 |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | Socket 988 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-2300 Mobile series |
| Processor codename | Sandy Bridge |
| Bus type | DMI |
| Stepping | J1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 85 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| CPU multiplier (bus/core ratio) | 24 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 500 GB |
|---|---|
| Storage media | HDD |
| Optical drive type | DVD-RW |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,MS PRO,Memory Stick (MS),SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon HD 7470M |
| On-board graphics card model | Intel® HD Graphics 3000 |
| Discrete graphics card memory | 1 GB |
| Discrete graphics memory type | GDDR3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card ID | 0x116 |
Audio
| Speakers manufacturer | Altec Lansing |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,3 MP |
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Integrated 4G WiMAX | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
Performance
| Motherboard chipset | Intel® HM65 Express |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | FreeDOS |
|---|---|
| Drivers included | Yes |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm |
| Supported instruction sets | AVX |
| Processor code | SR0DP |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 32 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Processor ARK ID | 53442 |
| Conflict-Free processor | No |
Battery
| Battery capacity | 37 Wh |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 2600 mAh |
Power
| AC adapter power | 75 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,95 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 2,6 kg |
|---|---|
| Width | 378 mm |
| Depth | 253 mm |
| Height (front) | 3,56 cm |
| Height (rear) | 3,72 cm |
Packaging content
| Manual | Yes |
|---|
Frequently asked questions
Is the ASUS X54HR-SX336D good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated AMD Radeon HD 7470M. Its card's page shows what level it handles current games at.
What is the screen of the ASUS X54HR-SX336D like?
It carries a 15.6" 1366x768 display.
Which processor and graphics card does the ASUS X54HR-SX336D have?
It runs on the Intel Core i3 i3-2370M processor with the AMD Radeon HD 7470M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS X54HR-SX336D be upgraded?
It has 1 memory slot, but it already ships with the maximum it takes (4 GB).
Which operating system does the ASUS X54HR-SX336D come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS X54HR-SX336D have?
According to its spec sheet: 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS X54HR-SX336D have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS X54HR-SX336D weigh?
It weighs 2,6 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the ASUS X54HR-SX336D released?
Its release date is August 2017, 9 years ago.
