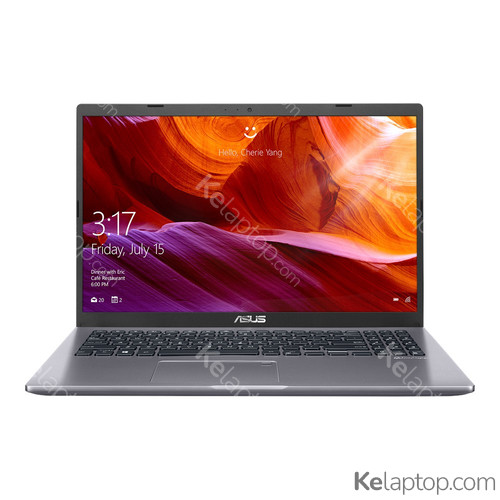

ASUS X509MA-BR310 90NB0Q31-M06150
Specs
Prices
Main specs
| Processor | Intel Celeron N4020 1,1GHz |
|---|---|
| Screen | 15.6" 1366x768 |
| Hard drive | 256GB SSD M.2 |
| RAM | 4GB DDR4-SDRAM |
| Operating system | No OS installed |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS X509MA-BR310 90NB0Q31-M06150
| Reference / Part Number | 90NB0Q31-M06150 |
|---|---|
| Release date | May 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Slate Grey |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Celeron® N |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N4020 |
| Processor frequency | 1,1 GHz |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2,8 GHz |
| Processor cache | 4 MB |
| Processor socket | BGA 1090 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Gemini Lake Refresh |
| Thermal Design Power (TDP) | 6 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4+1x2,2x1+1x2+1x2,4x1 |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 600 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 650 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 12 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card 4K support | Yes |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x3185 |
| Graphics card Open GL support | Yes |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
Performance
| Repairability index | 6.6 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Endless OS |
|---|
Processor special features
| Intel® Anti-Theft Technology (Intel® AT) | No |
|---|---|
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 25 x 24 mm |
| Supported instruction sets | SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 197310 |
Battery
| Battery capacity | 32 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 2 |
Power
| AC adapter power | 33 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 1,75 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Certificates
| Certification | UL, CE, FCC, BSMI, Australia C-TICK / NZ A-Tick, CCC, GOST-R, CB |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,8 kg |
|---|---|
| Width | 360,2 mm |
| Depth | 234,9 mm |
| Height | 22,9 mm |
Frequently asked questions
Is the ASUS X509MA-BR310 90NB0Q31-M06150 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 600. Its card's page shows what level it handles current games at.
What is the screen of the ASUS X509MA-BR310 90NB0Q31-M06150 like?
It carries a 15.6" 1366x768 display.
Which processor and graphics card does the ASUS X509MA-BR310 90NB0Q31-M06150 have?
It runs on the Intel Celeron N4020 processor with the Intel UHD Graphics 600 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS X509MA-BR310 90NB0Q31-M06150 be upgraded?
Yes: it has 1 memory slot and takes up to 8 GB according to the manufacturer (it ships with 4GB).
Which operating system does the ASUS X509MA-BR310 90NB0Q31-M06150 come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS X509MA-BR310 90NB0Q31-M06150 have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS X509MA-BR310 90NB0Q31-M06150 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS X509MA-BR310 90NB0Q31-M06150 weigh?
It weighs 1,8 kg, a normal weight for its size: easy enough to move around.
When was the ASUS X509MA-BR310 90NB0Q31-M06150 released?
Its release date is May 2020, 6 years ago.
