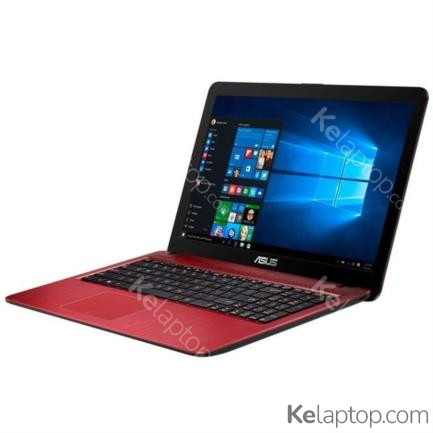

ASUS Vivobook X540YA-XX228T
Specs
Prices
Main specs
| Processor | AMD E E1-7010 1,5GHz |
|---|---|
| Screen | 15.6" 1366x768 |
| Hard drive | 500GB HDD |
| RAM | 4GB DDR3L-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | AMD Radeon R2 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS Vivobook X540YA-XX228T
| Reference / Part Number | X540YA-XX228T |
|---|---|
| Release date | July 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Red |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | AMD E |
|---|---|
| Processor manufacturer | AMD |
| Processor model | E1-7010 |
| Processor frequency | 1,5 GHz |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor socket | Socket FP4 |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | On-board |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 500 GB |
|---|---|
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon R2 |
| On-board graphics card family | AMD Radeon R2 |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 1 MP |
| Front camera resolution | 1280 x 720 pixels |
Network
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 33 Wh |
|---|---|
| Number of battery cells | 3 |
| Battery life (max) | 8 h |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2,47 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Password protection | Yes |
|---|---|
| Password protection type | BIOS,HDD,User |
Weight & dimensions
| Weight | 1,9 kg |
|---|---|
| Width | 381,4 mm |
| Depth | 251,5 mm |
| Height | 27,2 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 8 GB |
|---|
Frequently asked questions
Is the ASUS Vivobook X540YA-XX228T good for gaming?
This laptop was not built for gaming: it relies on the integrated AMD Radeon R2. Its card's page shows what level it handles current games at.
How long does the battery of the ASUS Vivobook X540YA-XX228T last?
The manufacturer declares up to 8 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the ASUS Vivobook X540YA-XX228T like?
It carries a 15.6" 1366x768 display.
Which processor and graphics card does the ASUS Vivobook X540YA-XX228T have?
It runs on the AMD E E1-7010 processor with the AMD Radeon R2 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS Vivobook X540YA-XX228T be upgraded?
Yes: it has 2 memory slots and takes up to 8 GB according to the manufacturer (it ships with 4GB).
Which operating system does the ASUS Vivobook X540YA-XX228T come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS Vivobook X540YA-XX228T have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook X540YA-XX228T have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS Vivobook X540YA-XX228T weigh?
It weighs 1,9 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Vivobook X540YA-XX228T released?
Its release date is July 2017, 9 years ago.
