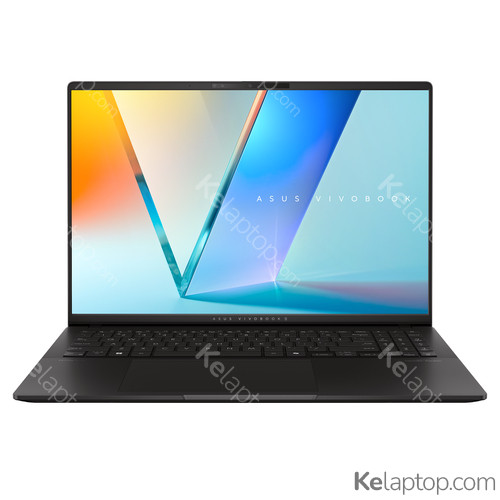

ASUS Vivobook S 16 OLED M5606UA-MX042W
Specs
Prices
Main specs
| Processor | AMD Ryzen 7 8845HS 3,8GHz |
|---|---|
| Screen | 16" 3200x2000 OLED 120Hz 400 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS Vivobook S 16 OLED M5606UA-MX042W
| Reference / Part Number | 90NB1482-M00380 |
|---|---|
| Release date | July 2024, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Neutral Black |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 40,6 cm |
|---|---|
| Display resolution | 3200 x 2000 pixels |
| Touchscreen | No |
| HD type | 3.2K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 600 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 500 |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 8845HS |
| Processor frequency | 3,8 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5,1 GHz |
| Processor cache | 16 MB |
| Processor cache type | L3 |
Neural processor unit (NPU)
| Neural processor unit (NPU) | AMD Ryzen AI |
|---|---|
| Total processor performance up to | 38 TOPs |
| NPU performance up to | 16 TOPs |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon 780M |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 1-zone RGB |
| Copilot key | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Microsoft Copilot | Yes |
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 4,5 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Certificates
| Compliance certificates | REACH |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,5 kg |
|---|---|
| Width | 353,6 mm |
| Depth | 246,9 mm |
| Height (front) | 1,39 cm |
| Height (rear) | 1,59 cm |
Packaging content
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the ASUS Vivobook S 16 OLED M5606UA-MX042W good for gaming?
This laptop was not built for gaming: it relies on the integrated AMD Radeon 780M. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook S 16 OLED M5606UA-MX042W like?
It carries a 16" 3200x2000 OLED 120Hz 400 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS Vivobook S 16 OLED M5606UA-MX042W have?
It runs on the AMD Ryzen 7 8845HS processor with the AMD Radeon 780M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Vivobook S 16 OLED M5606UA-MX042W come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Vivobook S 16 OLED M5606UA-MX042W have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook S 16 OLED M5606UA-MX042W have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Vivobook S 16 OLED M5606UA-MX042W have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS Vivobook S 16 OLED M5606UA-MX042W weigh?
It weighs 1,5 kg: one of the light ones, easy to carry every day.
When was the ASUS Vivobook S 16 OLED M5606UA-MX042W released?
Its release date is July 2024, 2 years ago.
