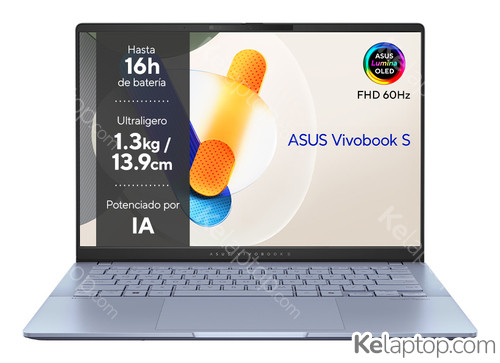

ASUS Vivobook S 14 OLED S5406MA-QD090W
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 1920x1200 OLED 400 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR5x-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | |
| Other | Keyboard Spanish. |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS Vivobook S 14 OLED S5406MA-QD090W
| Reference / Part Number | 90NB12H2-M00BD0 |
|---|---|
| Release date | February 2024, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Blue |
| Form factor | Clamshell |
| Color name | Mist Blue |
| Housing material | Aluminum |
| Market positioning | Home |
| Año de introducción | 2024 |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| High Dynamic Range (HDR) supported | Yes |
Processor
| Processor family | Intel Core Ultra 5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 125H |
| Generación del procesador | Intel Core Ultra (Series 1) |
| Processor cores | 14 |
| Processor boost frequency | 4,5 GHz |
| Núcleos de rendimiento | 4 |
| Núcleos de eficiencia | 8 |
| Frecuencia turbo máxima del núcleo de rendimiento | 4.5 |
| Frecuencia turbo máxima del núcleo de eficiencia | 3.6 |
| Frecuencia base de núcleo de rendimiento | 1.2 |
| Frecuencia base de núcleo eficiente | 0.7 |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Potencia base del procesador | 28 |
| Potencia turbo máxima | 115 |
Unidad de procesamiento neuronal (NPU)
| Copilot+ PC | Yes |
|---|
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card family | Intel Arc Graphics |
Audio
| Audio system | Smart Amp |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Número de puertos Thunderbolt 4 | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 8.4 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | RGB |
| Zona retroiluminada del teclado | 1-zone RGB |
| Keyboard language | Spanish |
| Tecla Copilot | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Microsoft Copilot | Yes |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 4,5 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
Security
| Windows Hello | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS,REACH |
|---|
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2.9 lbs (1,3 kg) |
|---|---|
| Width | 12.2 " (310,5 mm) |
| Depth | 8.7 " (221,9 mm) |
| Height (front) | 0.5 " (1,39 cm) |
| Height (rear) | 0.6 " (1,59 cm) |
Packaging data
| Package width | 16.9 " (429 mm) |
|---|---|
| Package depth | 2.6 " (65 mm) |
| Package height | 10.6 " (270 mm) |
| Package weight | 3.1 lbs (1,4 kg) |
Frequently asked questions
Is the ASUS Vivobook S 14 OLED S5406MA-QD090W good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Arc Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook S 14 OLED S5406MA-QD090W like?
It carries a 14" 1920x1200 OLED 400 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS Vivobook S 14 OLED S5406MA-QD090W have?
It runs on the Intel Core Ultra 5 125H processor with the Intel Arc Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Vivobook S 14 OLED S5406MA-QD090W come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Vivobook S 14 OLED S5406MA-QD090W have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook S 14 OLED S5406MA-QD090W have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Vivobook S 14 OLED S5406MA-QD090W have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS Vivobook S 14 OLED S5406MA-QD090W made of?
Its housing is made of Aluminum.
How much does the ASUS Vivobook S 14 OLED S5406MA-QD090W weigh?
It weighs 1,3 kg: one of the light ones, easy to carry every day.
When was the ASUS Vivobook S 14 OLED S5406MA-QD090W released?
Its release date is February 2024, 2 years ago.
