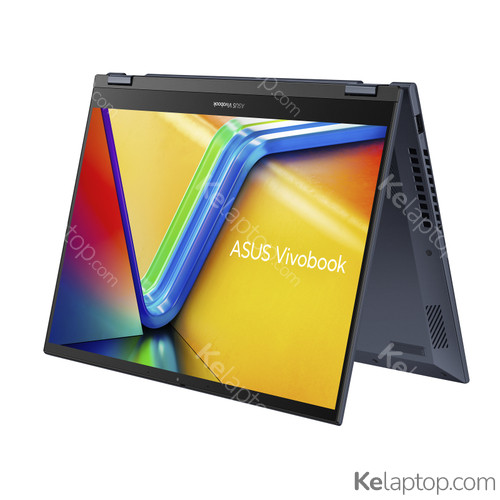

ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570
Specs
Prices
Main specs
| Processor | AMD Ryzen 7 7730U 2GHz |
|---|---|
| Screen | 14" 1920x1200 IPS 60Hz 300 nits 45% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or better features at a better price
Full specifications of ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570
Reference / Part Number
90NB1111-M00570
Release date
May 2023, 3 years ago
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Blue |
| Form factor | Convertible (Folder) |
| Color name | Quiet Blue |
| Housing material | Aluminum |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 300 cd/m² |
| RGB color space | NTSC |
| Color gamut | 45 % |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 7730U |
| Processor frequency | 2 GHz |
| Generación del procesador | AMD Ryzen 7000 Series |
| Processor cores | 8 |
| Processor boost frequency | 4,5 GHz |
| Processor cache | 16 MB |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | AMD |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 6.4 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard language | Dutch |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2,37 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
| USB Power Delivery | Yes |
Security
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Password protection | Yes |
Weight & dimensions
| Weight | 3.3 lbs (1,5 kg) |
|---|---|
| Width | 12.3 " (313,2 mm) |
| Depth | 9 " (227,6 mm) |
| Height | 0.7 " (18,9 mm) |
Frequently asked questions
Is the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 good for gaming?
This laptop was not built for gaming: it relies on the integrated AMD Radeon Graphics · AMD Ryzen 7 7730U. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 like?
It carries a 14" 1920x1200 IPS 60Hz 300 nits 45% NTSC display.
Which processor and graphics card does the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 have?
It runs on the AMD Ryzen 7 7730U processor with the AMD Radeon Graphics · AMD Ryzen 7 7730U graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 be upgraded?
It has 1 memory slot, but it already ships with the maximum it takes (16 GB).
Which operating system does the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 made of?
Its housing is made of Aluminum.
How much does the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 weigh?
It weighs 1,5 kg: one of the light ones, easy to carry every day.
When was the ASUS Vivobook S 14 Flip TN3402YA-LZ083W 90NB1111-M00570 released?
Its release date is May 2023, 3 years ago.
