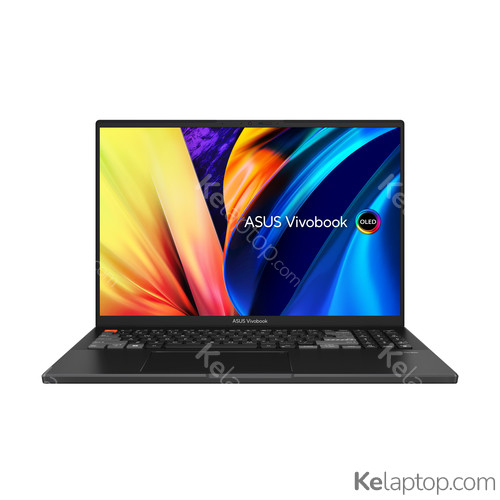

ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 16" 3840x2400 OLED 60Hz 400 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 32GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3070 Ti 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912
| Reference / Part Number | N7601ZM-OLEDP912 |
|---|---|
| Release date | April 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | 0°Black |
| Housing material | Aluminum |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 3840 x 2400 pixels |
| Touchscreen | No |
| HD type | WQUXGA |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 600 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Display response rise/fall | 0,2 ms |
| Maximum refresh rate | 60 Hz |
| Display number of colors | 1.073 billion colors |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 600 |
Processor
| Processor family | Intel® Core™ i9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i9-12900H |
| Generación del procesador | Intel Core i9-12xxx |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Frecuencia de aceleración de núcleo eficiente | 3.8 |
| Processor cache | 24 MB |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 Ti |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Número de puertos Thunderbolt 4 | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 0.2 " (6.0 mm) |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
| USB Power Delivery | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Aprobaciones reguladoras
| Certificados de conformidad | REACH,RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Weight | 5.1 lbs (2,3 kg) |
|---|---|
| Width | 14 " (355,4 mm) |
| Depth | 9.8 " (248,5 mm) |
| Height (front) | 0.8 " (1,99 cm) |
| Height (rear) | 0.9 " (2,19 cm) |
Frequently asked questions
Is the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3070 Ti. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 like?
It carries a 16" 3840x2400 OLED 60Hz 400 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 have?
It runs on the Intel Core i9-12900H processor with the NVIDIA GeForce RTX 3070 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 be upgraded?
It has 1 memory slot, but it already ships with the maximum it takes (32 GB).
Which operating system does the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 have?
According to its spec sheet: 1 × Thunderbolt 4, 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 made of?
Its housing is made of Aluminum.
How much does the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 weigh?
It weighs 2,3 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Vivobook Pro 16X OLED N7601ZW-MQ054W N7601ZM-OLEDP912 released?
Its release date is April 2023, 3 years ago.
