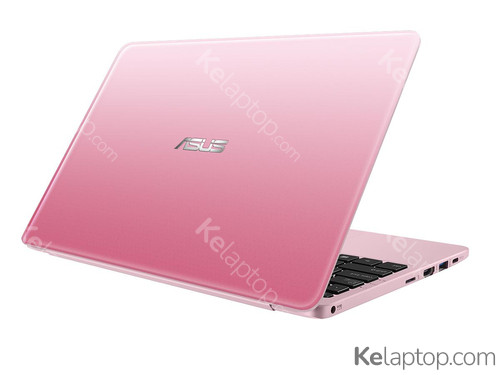

ASUS Vivobook E12 E203NA-FD142
Specs
Prices
Main specs
| Processor | Intel Pentium N4200 1,1GHz |
|---|---|
| Screen | 11.6" 1366x768 |
| Hard drive | 128GB eMMC |
| RAM | 4GB DDR3L-SDRAM |
| Operating system | No OS installed |
| Graphics card | Intel HD Graphics 505 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS Vivobook E12 E203NA-FD142
| Reference / Part Number | E203NA-FD142 |
|---|---|
| Release date | April 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Pink |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 29,5 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Pentium® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N4200 |
| Processor frequency | 1,1 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2,5 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1296 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium Processor N4000 Series for Mobile |
| Processor codename | Apollo Lake |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2,1x2+2x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | eMMC |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 505 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 750 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 18 |
| On-board graphics card ID | 0x5A84 |
Audio
| Speaker power | 2 W |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Mini VGA ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| LAN/VGA combo port | No |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Microphone in | No |
| Line-in | No |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| Alienware graphics amplifier port | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Serial ports quantity | 0 |
| Total number of SATA connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of USB ports with PowerShare support | 0 |
| Number of Thunderbolt 3 ports with PowerShare support | 0 |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | No |
|---|
Processor special features
| Intel® Wireless Display (Intel® WiDi) | No |
|---|---|
| Intel Smart Connect Technology | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 24 x 31 mm |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Boot | Yes |
| Intel Smart Connect Technology version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Rapid Storage Technology | No |
| Processor ARK ID | 95592 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 38 Wh |
|---|---|
| Number of battery cells | 2 |
Power
| AC adapter power | 33 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 1,75 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 980 g |
|---|---|
| Width | 286 mm |
| Depth | 193,3 mm |
| Height | 16,9 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Frequently asked questions
Is the ASUS Vivobook E12 E203NA-FD142 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 505. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook E12 E203NA-FD142 like?
It carries a 11.6" 1366x768 display.
Which processor and graphics card does the ASUS Vivobook E12 E203NA-FD142 have?
It runs on the Intel Pentium N4200 processor with the Intel HD Graphics 505 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Vivobook E12 E203NA-FD142 come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS Vivobook E12 E203NA-FD142 have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook E12 E203NA-FD142 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS Vivobook E12 E203NA-FD142 weigh?
It weighs 980 g.
When was the ASUS Vivobook E12 E203NA-FD142 released?
Its release date is April 2018, 8 years ago.
