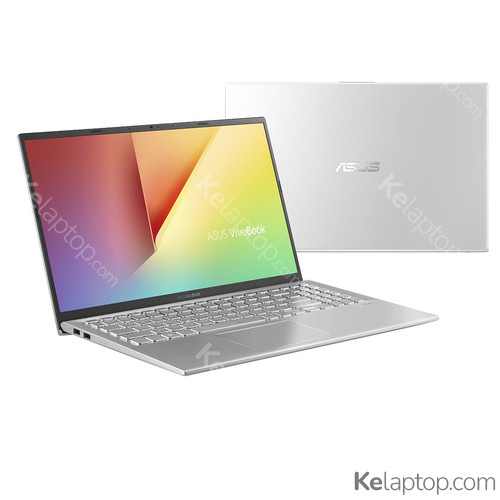

ASUS Vivobook 15 R564DK-EJ093T-BE
Specs
Prices
Main specs
| Processor | AMD Ryzen 5 PRO 3500U 2,1GHz |
|---|---|
| Screen | 15.6" 1920x1080 |
| Hard drive | 256GB SSD M.2 |
| RAM | 12GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | AMD Radeon 540X 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS Vivobook 15 R564DK-EJ093T-BE
| Reference / Part Number | 90NB0LY2-M01290 |
|---|---|
| Release date | April 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
| Colour name | Transparent Silver |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Dual-screen | No |
Processor
| Processor family | AMD Ryzen™ 5 PRO |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 3500U |
| Processor frequency | 2,1 GHz |
| Processor generation | AMD Ryzen PRO 3000 Series |
Memory
| Internal memory | 12 GB |
|---|---|
| Maximum internal memory | 12 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA III |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon 540X |
| On-board graphics card model | AMD Radeon Vega 8 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 1x1 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| Mini DisplayPort/Thunderbolt combo port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Mini VGA ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Number of USB ports with PowerShare support | 0 |
| Number of Thunderbolt 3 ports with PowerShare support | 0 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 37 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 2 |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2,37 A |
| AC adapter output voltage | 19 V |
Certificates
| Certification | UL, CE Marking Compliance, FCC Compliance, BSMI, CCC, CB |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,75 kg |
|---|---|
| Width | 357,2 mm |
| Depth | 230,4 mm |
| Height | 19,9 mm |
Other features
| Maximum internal memory (64-bit) | 12 GB |
|---|
Frequently asked questions
Is the ASUS Vivobook 15 R564DK-EJ093T-BE good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated AMD Radeon 540X. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook 15 R564DK-EJ093T-BE like?
It carries a 15.6" 1920x1080 display.
Which processor and graphics card does the ASUS Vivobook 15 R564DK-EJ093T-BE have?
It runs on the AMD Ryzen 5 PRO 3500U processor with the AMD Radeon 540X graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS Vivobook 15 R564DK-EJ093T-BE be upgraded?
It has 1 memory slot, but it already ships with the maximum it takes (12 GB).
Which operating system does the ASUS Vivobook 15 R564DK-EJ093T-BE come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS Vivobook 15 R564DK-EJ093T-BE have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Vivobook 15 R564DK-EJ093T-BE have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS Vivobook 15 R564DK-EJ093T-BE weigh?
It weighs 1,75 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Vivobook 15 R564DK-EJ093T-BE released?
Its release date is April 2019, 7 years ago.
