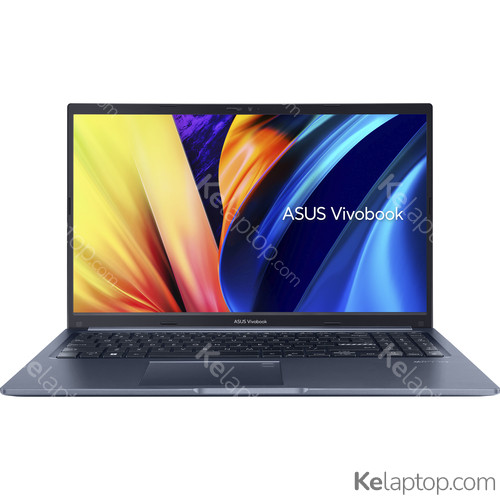

ASUS Vivobook 15 F1502ZA-DS72
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz 250 nits 45% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or better features at a better price
From ASUS
Full specifications of ASUS Vivobook 15 F1502ZA-DS72
| Reference / Part Number | 90NB0VX1-M006R0 |
|---|---|
| Release date | May 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue |
| Form factor | Clamshell |
| Colour name | Quiet Blue |
| Housing material | Plastic |
| Market positioning | Home |
| Introduction year | 2022 |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 250 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1260P |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor cores | 12 |
| Processor boost frequency | 4,7 GHz |
| Processor cache | 18 MB |
| Configurable TDP-down | 20 W |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 4.5 mm |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 42 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Certificates
| Compliance certificates | REACH,RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Weight | 1,7 kg |
|---|---|
| Width | 359,7 mm |
| Depth | 232,5 mm |
| Height | 19,9 mm |
Frequently asked questions
Is the ASUS Vivobook 15 F1502ZA-DS72 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Vivobook 15 F1502ZA-DS72 like?
It carries a 15.6" 1920x1080 IPS 60Hz 250 nits 45% NTSC display.
Which processor and graphics card does the ASUS Vivobook 15 F1502ZA-DS72 have?
It runs on the Intel Core i7-1260P processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS Vivobook 15 F1502ZA-DS72 be upgraded?
Yes: it has 1 memory slot and takes up to 16 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS Vivobook 15 F1502ZA-DS72 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Vivobook 15 F1502ZA-DS72 have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS Vivobook 15 F1502ZA-DS72 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Vivobook 15 F1502ZA-DS72 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS Vivobook 15 F1502ZA-DS72 made of?
Its housing is made of Plastic.
How much does the ASUS Vivobook 15 F1502ZA-DS72 weigh?
It weighs 1,7 kg, a normal weight for its size: easy enough to move around.
When was the ASUS Vivobook 15 F1502ZA-DS72 released?
Its release date is May 2022, 4 years ago.
