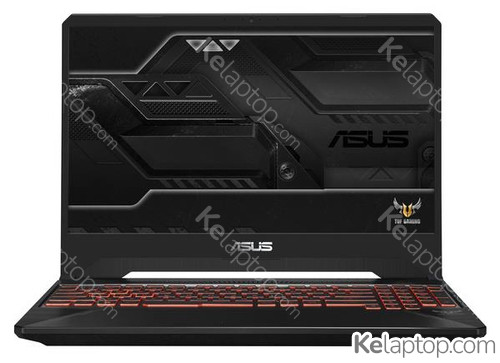

ASUS TUF Gaming FX505GM-BN037T
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8750H 2,2GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz 72% NTSC |
| Hard drive | 1,26TB HDD+SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1060 6GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS TUF Gaming FX505GM-BN037T
| Reference / Part Number | FX505GM-BN037T |
|---|---|
| Release date | January 2021, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| RGB colour space | NTSC |
| Colour gamut | 72 % |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8750H |
| Processor frequency | 2,2 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 6 |
| Processor boost frequency | 4,1 GHz |
| Processor cache | 9 MB |
| Bus type | DMI |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 1,7 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1,26 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1060 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Audio system | DTS Headphone: X |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Combo headphone/mic port | Yes |
Performance
| Motherboard chipset | Intel® HM370 |
|---|---|
| Repairability index | 5.2 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 48 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
Power
| AC adapter frequency | 50/60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
Certificates
| Certification | UL, CE Marking Compliance, FCC Compliance, BSMI, CCC, CB, JATE |
|---|
Weight & dimensions
| Weight | 2,2 kg |
|---|---|
| Width | 360,4 mm |
| Depth | 262 mm |
| Height (front) | 2,58 cm |
| Height (rear) | 2,68 cm |
Frequently asked questions
Is the ASUS TUF Gaming FX505GM-BN037T good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1060. Its card's page shows what level it handles current games at.
What is the screen of the ASUS TUF Gaming FX505GM-BN037T like?
It carries a 15.6" 1920x1080 IPS 60Hz 72% NTSC display.
Which processor and graphics card does the ASUS TUF Gaming FX505GM-BN037T have?
It runs on the Intel Core i7 i7-8750H processor with the NVIDIA GeForce GTX 1060 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS TUF Gaming FX505GM-BN037T be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the ASUS TUF Gaming FX505GM-BN037T come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS TUF Gaming FX505GM-BN037T have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS TUF Gaming FX505GM-BN037T have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS TUF Gaming FX505GM-BN037T weigh?
It weighs 2,2 kg, a normal weight for its size: easy enough to move around.
When was the ASUS TUF Gaming FX505GM-BN037T released?
Its release date is January 2021, 5 years ago.
