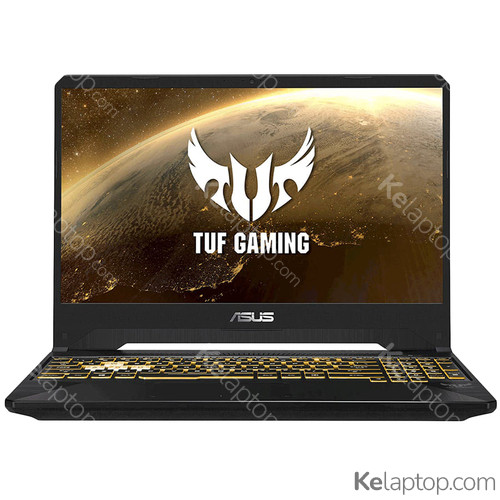

ASUS TUF Gaming FX505DD-AL062
Specs
Prices
Main specs
| Processor | AMD Ryzen 5 3550H 2,1GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz |
| Hard drive | 512GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | No OS installed |
| Graphics card | NVIDIA GeForce GTX 1050 3GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS TUF Gaming FX505DD-AL062
| Reference / Part Number | FX505DD-AL062 |
|---|---|
| Release date | June 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Dual-screen | No |
| Maximum refresh rate | 60 Hz |
| NTSC coverage (typical) | 45 % |
Processor
| Processor family | AMD Ryzen™ 5 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 3550H |
| Processor frequency | 2,1 GHz |
| Processor generation | AMD Ryzen 3000 Series |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,7 GHz |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| Card reader integrated | No |
Graphics
| Discrete graphics card | Yes |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 |
| Discrete graphics card memory | 3 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Speaker power | 2 W |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
Performance
| Repairability index | 5.2 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Windows keys | Yes |
Software
| Operating system installed | No |
|---|
Battery
| Battery capacity | 48 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
Power
| AC adapter frequency | 50 - 60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
Weight & dimensions
| Weight | 2,3 kg |
|---|---|
| Width | 360,4 mm |
| Depth | 262 mm |
| Height (front) | 2,58 cm |
| Height (rear) | 2,68 cm |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|
Frequently asked questions
Is the ASUS TUF Gaming FX505DD-AL062 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1050. Its card's page shows what level it handles current games at.
What is the screen of the ASUS TUF Gaming FX505DD-AL062 like?
It carries a 15.6" 1920x1080 IPS 60Hz display.
Which processor and graphics card does the ASUS TUF Gaming FX505DD-AL062 have?
It runs on the AMD Ryzen 5 3550H processor with the NVIDIA GeForce GTX 1050 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS TUF Gaming FX505DD-AL062 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS TUF Gaming FX505DD-AL062 come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS TUF Gaming FX505DD-AL062 have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS TUF Gaming FX505DD-AL062 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS TUF Gaming FX505DD-AL062 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS TUF Gaming FX505DD-AL062 weigh?
It weighs 2,3 kg, a normal weight for its size: easy enough to move around.
When was the ASUS TUF Gaming FX505DD-AL062 released?
Its release date is June 2019, 7 years ago.
