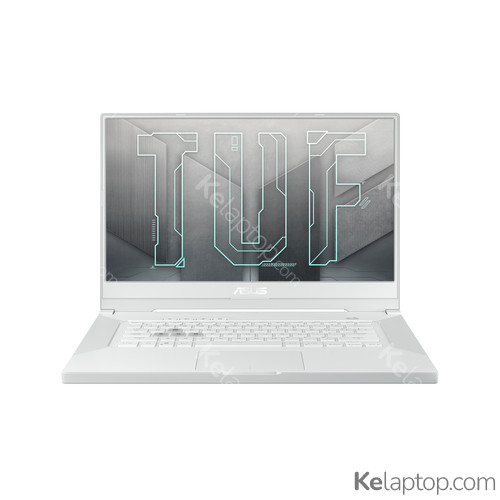

ASUS TUF Dash F15 TUF516PR-DS77-WH
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 IPS 240Hz 100% sRGB |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce RTX 3070 8GB GDDR6 |
Alternatives with equal or better features at a better price
Full specifications of ASUS TUF Dash F15 TUF516PR-DS77-WH
| Reference / Part Number | TUF516PR-DS77-WH |
|---|---|
| Release date | February 2021, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | White |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| RGB color space | sRGB |
| Color gamut | 100 % |
| Maximum refresh rate | 240 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-11375H |
| Generación del procesador | Intel Core i7-11xxx |
| Processor cores | 4 |
| Processor boost frequency | 5 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 3,3 GHz |
| Configurable TDP-up | 35 W |
| Configurable TDP-down | 28 W |
| Configurable TDP-down frequency | 3 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11g,Wi-Fi 5 (802.11ac),802.11b,Wi-Fi 4 (802.11n),Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Thunderbolt technology | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0b |
| Número de puertos Thunderbolt 4 | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 0.2 " (6.0 mm) |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 76 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Power Delivery | Yes |
|---|---|
| AC adapter power | 200 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 10 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 4.4 lbs (2 kg) |
|---|---|
| Width | 14.2 " (360 mm) |
| Depth | 9.9 " (252 mm) |
| Height | 0.8 " (19,9 mm) |
Frequently asked questions
Is the ASUS TUF Dash F15 TUF516PR-DS77-WH good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3070. Its card's page shows what level it handles current games at.
What is the screen of the ASUS TUF Dash F15 TUF516PR-DS77-WH like?
It carries a 15.6" 1920x1080 IPS 240Hz 100% sRGB display.
Which processor and graphics card does the ASUS TUF Dash F15 TUF516PR-DS77-WH have?
It runs on the Intel Core i7-11375H processor with the NVIDIA GeForce RTX 3070 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS TUF Dash F15 TUF516PR-DS77-WH be upgraded?
Yes: it has 1 memory slot and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the ASUS TUF Dash F15 TUF516PR-DS77-WH come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS TUF Dash F15 TUF516PR-DS77-WH have?
According to its spec sheet: 1 × Thunderbolt 4, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS TUF Dash F15 TUF516PR-DS77-WH have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS TUF Dash F15 TUF516PR-DS77-WH have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS TUF Dash F15 TUF516PR-DS77-WH weigh?
It weighs 2 kg, a normal weight for its size: easy enough to move around.
When was the ASUS TUF Dash F15 TUF516PR-DS77-WH released?
Its release date is February 2021, 5 years ago.
