ASUS TUF Dash F15 FX516PM-HN986
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 IPS 144Hz |
| Hard drive | 512GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | No OS installed |
| Graphics card | NVIDIA GeForce RTX 3060 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price

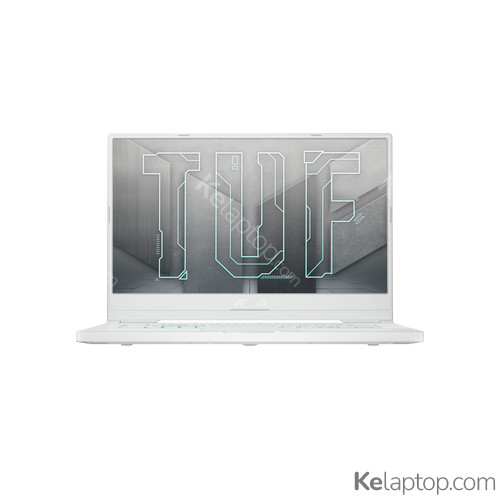

Full specifications of ASUS TUF Dash F15 FX516PM-HN986
| Reference / Part Number | 90NR05X3-M06180 |
|---|---|
| Release date | August 2021, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | White |
| Form factor | Clamshell |
| Colour name | Moonlight White |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Maximum refresh rate | 144 Hz |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-11370H |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor boost frequency | 4,8 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 3,3 GHz |
| Configurable TDP-up | 35 W |
| Configurable TDP-down | 28 W |
| Configurable TDP-down frequency | 3 GHz |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0b |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
Performance
| Repairability index | 6.5 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | No |
|---|
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 76 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 200 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 10 A |
| AC adapter output voltage | 20 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 2 kg |
|---|---|
| Width | 360 mm |
| Depth | 252 mm |
| Height | 19,9 mm |
Frequently asked questions
Is the ASUS TUF Dash F15 FX516PM-HN986 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3060. Its card's page shows what level it handles current games at.
What is the screen of the ASUS TUF Dash F15 FX516PM-HN986 like?
It carries a 15.6" 1920x1080 IPS 144Hz display.
Which processor and graphics card does the ASUS TUF Dash F15 FX516PM-HN986 have?
It runs on the Intel Core i7-11370H processor with the NVIDIA GeForce RTX 3060 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS TUF Dash F15 FX516PM-HN986 be upgraded?
Yes: it has 1 memory slot and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS TUF Dash F15 FX516PM-HN986 come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS TUF Dash F15 FX516PM-HN986 have?
According to its spec sheet: 1 × Thunderbolt 4, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS TUF Dash F15 FX516PM-HN986 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS TUF Dash F15 FX516PM-HN986 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS TUF Dash F15 FX516PM-HN986 weigh?
It weighs 2 kg, a normal weight for its size: easy enough to move around.
When was the ASUS TUF Dash F15 FX516PM-HN986 released?
Its release date is August 2021, 5 years ago.
