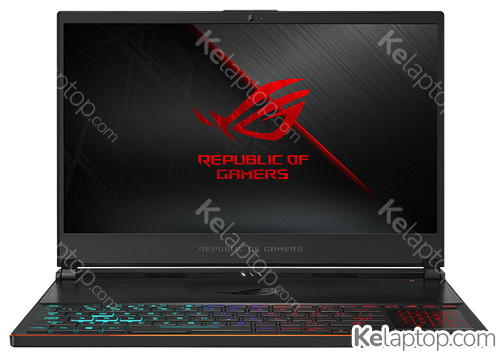

ASUS ROG Zephyrus S GX531GW-ES010T
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8750H 2,2GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 144Hz |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce RTX 2070 Max-Q 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS ROG Zephyrus S GX531GW-ES010T
| Reference / Part Number | 90NR01E1-M00110 |
|---|---|
| Release date | February 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black,Red |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display response rise/fall | 3 ms |
| Maximum refresh rate | 144 Hz |
| sRGB coverage (typical) | 100 % |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8750H |
| Processor frequency | 2,2 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor boost frequency | 4,1 GHz |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor cores | 6 |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Stepping | U0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 1,7 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 24 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | On-board + SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2070 Max-Q |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 1 |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| ExpressCard slot | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Virtual Reality (VR) ready | Yes |
|---|---|
| Repairability index | 5.2 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | Various |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR3YY |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134906 |
Power
| AC adapter power | 230 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
Weight & dimensions
| Weight | 2,1 kg |
|---|---|
| Width | 360 mm |
| Depth | 268 mm |
| Height (front) | 1,54 cm |
| Height (rear) | 1,61 cm |
Packaging content
| Bag included | Yes |
|---|---|
| Manual | Yes |
Other features
| Measurable quality | Yes |
|---|---|
| Extreme temperature test | Yes |
| AC adapter included | Yes |
Frequently asked questions
Is the ASUS ROG Zephyrus S GX531GW-ES010T good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 2070 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ROG Zephyrus S GX531GW-ES010T like?
It carries a 15.6" 1920x1080 IPS 144Hz display.
Which processor and graphics card does the ASUS ROG Zephyrus S GX531GW-ES010T have?
It runs on the Intel Core i7 i7-8750H processor with the NVIDIA GeForce RTX 2070 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS ROG Zephyrus S GX531GW-ES010T come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS ROG Zephyrus S GX531GW-ES010T have?
According to its spec sheet: 2 × USB-C, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS ROG Zephyrus S GX531GW-ES010T have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ROG Zephyrus S GX531GW-ES010T have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS ROG Zephyrus S GX531GW-ES010T made of?
Its housing is made of Aluminium.
How much does the ASUS ROG Zephyrus S GX531GW-ES010T weigh?
It weighs 2,1 kg, a normal weight for its size: easy enough to move around.
When was the ASUS ROG Zephyrus S GX531GW-ES010T released?
Its release date is February 2019, 7 years ago.
