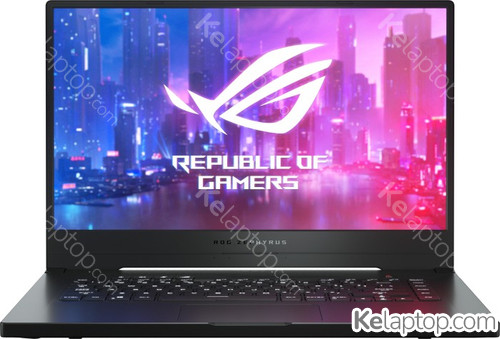

ASUS ROG Zephyrus G GA502IV-AZ063T
Specs
Prices
Main specs
| Processor | AMD Ryzen 9 4900HS 3GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce RTX 2060 Max-Q 6GB GDDR6 |
| Other | Keyboard German. |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS ROG Zephyrus G GA502IV-AZ063T
| Reference / Part Number | 90NR02R1-M01920 |
|---|---|
| Release date | October 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor
| Processor family | AMD Ryzen™ 9 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 4900HS |
| Processor frequency | 3 GHz |
| Processor generation | AMD Ryzen 4000 Series |
| Processor cores | 8 |
| Processor boost frequency | 4,3 GHz |
| Processor cache | 12 MB |
| Processor cache type | L2 & L3 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board + SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 2060 Max-Q |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| NVIDIA Max-Q | Yes |
| CUDA | Yes |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
Performance
| Virtual Reality (VR) ready | Yes |
|---|---|
| Repairability index | 6.0 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard layout | QWERTZ |
| Keyboard language | German |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Power
| AC adapter power | 180 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
Weight & dimensions
| Weight | 2,1 kg |
|---|---|
| Width | 360 mm |
| Depth | 252 mm |
| Height | 19,9 mm |
Frequently asked questions
Is the ASUS ROG Zephyrus G GA502IV-AZ063T good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 2060 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ROG Zephyrus G GA502IV-AZ063T like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the ASUS ROG Zephyrus G GA502IV-AZ063T have?
It runs on the AMD Ryzen 9 4900HS processor with the NVIDIA GeForce RTX 2060 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS ROG Zephyrus G GA502IV-AZ063T come with?
It comes with Windows 10 Home preinstalled.
Which ports does the ASUS ROG Zephyrus G GA502IV-AZ063T have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS ROG Zephyrus G GA502IV-AZ063T have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS ROG Zephyrus G GA502IV-AZ063T weigh?
It weighs 2,1 kg, a normal weight for its size: easy enough to move around.
When was the ASUS ROG Zephyrus G GA502IV-AZ063T released?
Its release date is October 2020, 6 years ago.
