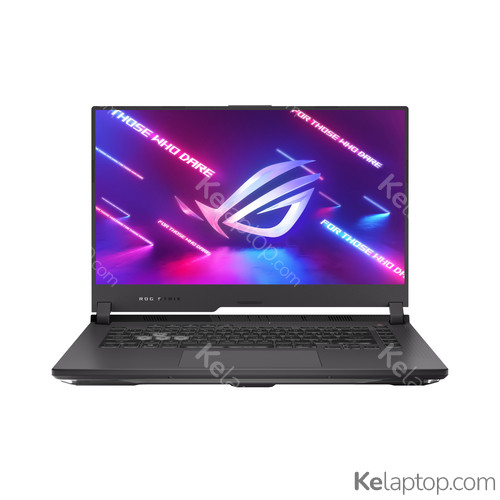

ASUS ROG Strix G15 G513QM-ES74
 +11

ASUS ROG Strix G15 G513QM-ES74
Price and specs

Main specs

Processor

AMD Ryzen 7 5800H 3,2GHz

Screen 15.6" 1920x1080 IPS 144Hz
Hard drive 512GB SSD M.2
RAM 16GB DDR4-SDRAM
Operating system Windows 10 Home
Graphics card NVIDIA GeForce RTX 3060 6GB GDDR6
Prices

Full specifications

Reference

G513QM-ES74

Release date

01-2021, 3 years ago

Design

Product type

Notebook

Product color

Black

Form factor

Clamshell

Market positioning

Gaming

Display

Display diagonal

15.6 " (39,6 cm)

Display resolution

1920 x 1080 pixels

Touchscreen

No

HD type

Full HD

Panel type

IPS

Native aspect ratio

16:9

Anti-glare screen

Yes

Maximum refresh rate

144 Hz

Processor

Processor family

AMD Ryzen™ 7

Processor manufacturer

AMD

Processor model

5800H

Processor frequency

3,2 GHz

Processor boost frequency

4,4 GHz

Processor cores

8

Processor cache

16 MB

Memory

Internal memory

16 GB

Maximum internal memory

32 GB

Internal memory type

DDR4-SDRAM

Memory clock speed

3200 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

2 x 8 GB

Memory slots

2x SO-DIMM

Storage

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

NVMe,PCI Express 3.0

NVMe

Yes

SSD form factor

M.2

Graphics

On-board graphics card

Yes

Discrete graphics card

Yes

Discrete graphics card model

NVIDIA GeForce RTX 3060

On-board graphics card model

AMD Radeon Graphics

Discrete graphics card memory

6 GB

Discrete graphics memory type

GDDR6

Audio

Audio system

Dolby Atmos

Number of built-in speakers

2

Speaker power

4 W

Built-in microphone

Yes

Network

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.1

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI version

2.0b

Combo headphone/mic port

Yes

Charging port type

DC-in jack

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

Keyboard

Numeric keypad

No

Pointing device

Touchpad

Keyboard backlit

Yes

Software

Operating system installed

Windows 10 Home

Operating system architecture

64-bit

Battery

Battery capacity

90 Wh

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

4

Power

AC adapter power

240 W

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output current

12 A

AC adapter output voltage

20 V

Security

Password protection

Yes

Password protection type

BIOS,User

Weight & dimensions

Weight

5.1 lbs (2,3 kg)

Width

13.9 " (354 mm)

Depth

10.2 " (259 mm)

Height (front)

0.9 " (2,26 cm)

Height (rear)

1.1 " (2,72 cm)

Technical details

Repairability index

7.1
