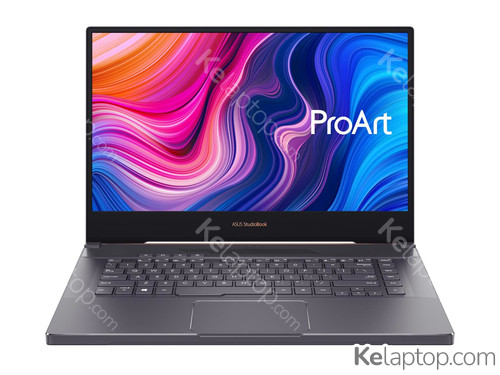

ASUS ProArt StudioBook W500G5T-XS77
Specs
Prices
Main specs
| Processor | Intel Core i7-9750H 2,6GHz |
|---|---|
| Screen | 15.6" 3840x2160 IPS 60Hz |
| Hard drive | 2TB SSD |
| RAM | 48GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro RTX 5000 Max-Q 16GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS ProArt StudioBook W500G5T-XS77
| Reference / Part Number | W500G5T-XS77 |
|---|---|
| Release date | January 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Gray |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 100 % |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-9750H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i7-9xxx |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,5 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 48 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
Storage
| Total storage capacity | 2 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 5000 Max-Q |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| NVIDIA Max-Q | Yes |
Audio
| Audio system | SonicMaster |
|---|---|
| Speaker power | 1 W |
| Built-in microphone | Yes |
Network
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
Performance
| Motherboard chipset | Intel® HM370 |
|---|---|
| Repairability index | 6.8 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191045 |
Battery
| Battery capacity | 76 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
Power
| AC adapter power | 230 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 11,8 A |
| AC adapter output voltage | 19.5 V |
Security
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Password protection | Yes |
| Password protection type | BIOS,User |
Aprobaciones reguladoras
| Compliance certificates | RoHS |
|---|---|
| Certification | UL, MIC, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, CB, EPEAT, EU Flower, Energy Star, WEEE, Erp 2013, RoHS, JATE |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 4.4 lbs (1,98 kg) |
|---|---|
| Width | 14.2 " (360 mm) |
| Depth | 9.9 " (252 mm) |
| Height (front) | 0.7 " (1,89 cm) |
| Height (rear) | 0.8 " (2,09 cm) |
Other features
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the ASUS ProArt StudioBook W500G5T-XS77 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro RTX 5000 Max-Q. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ProArt StudioBook W500G5T-XS77 like?
It carries a 15.6" 3840x2160 IPS 60Hz display.
Which processor and graphics card does the ASUS ProArt StudioBook W500G5T-XS77 have?
It runs on the Intel Core i7-9750H processor with the NVIDIA Quadro RTX 5000 Max-Q graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS ProArt StudioBook W500G5T-XS77 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the ASUS ProArt StudioBook W500G5T-XS77 have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS ProArt StudioBook W500G5T-XS77 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS ProArt StudioBook W500G5T-XS77 weigh?
It weighs 1,98 kg, a normal weight for its size: easy enough to move around.
When was the ASUS ProArt StudioBook W500G5T-XS77 released?
Its release date is January 2020, 6 years ago.
