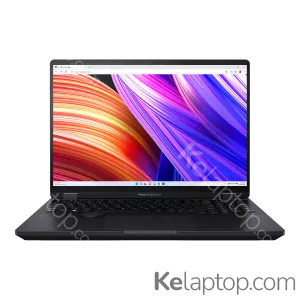

ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1
Specs
Prices
Main specs
| Processor | Intel Core i9-13980HX 2,2GHz |
|---|---|
| Screen | 16" 3200x2000 OLED 120Hz 500 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 32GB DDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | NVIDIA RTX 3000 Ada 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1
| Reference / Part Number | 90NB10B1-M000K0 |
|---|---|
| Release date | December 2023, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Mineral Black |
| Market positioning | Performance |
Image gallery
Screen
| Display diagonal | 40,6 cm |
|---|---|
| Display resolution | 3200 x 2000 pixels |
| Touchscreen | Yes |
| HD type | 3.2K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 500 cd/m² |
| Maximum display brightness (HDR) | 550 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
Processor
| Processor family | Intel® Core™ i9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i9-13980HX |
| Processor frequency | 2,2 GHz |
| Processor generation | 13th gen Intel® Core™ i9 |
| Processor cores | 24 |
| Processor boost frequency | 5,6 GHz |
| Processor cache | 36 MB |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX 3000 Ada |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio system | Smart Amp |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 6.3 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD,User |
Certificates
| Certification | RoHS, REACH |
|---|
Weight & dimensions
| Weight | 2,4 kg |
|---|---|
| Width | 356 mm |
| Depth | 271 mm |
| Height (front) | 2,09 cm |
| Height (rear) | 2,39 cm |
Frequently asked questions
Is the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA RTX 3000 Ada. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 like?
It carries a 16" 3200x2000 OLED 120Hz 500 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 have?
It runs on the Intel Core i9-13980HX processor with the NVIDIA RTX 3000 Ada graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 weigh?
It weighs 2,4 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the ASUS ProArt StudioBook Pro 16 OLED W7604J3D-93DOQAPP1 released?
Its release date is December 2023, 2 years ago.
