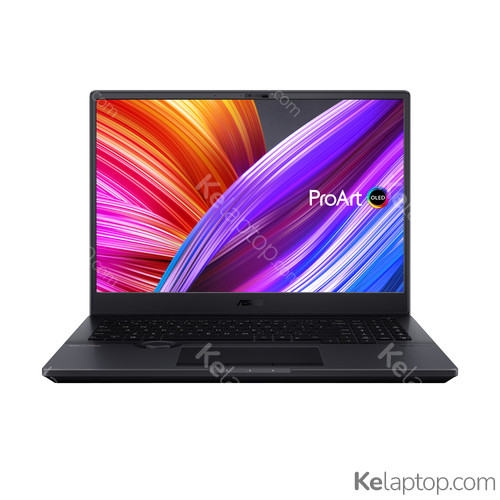

ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W
Specs
Prices
Main specs
| Processor | Intel Core i9-12900H 2,5GHz |
|---|---|
| Screen | 16" 3840x2400 OLED 60Hz 600 nits 100% DCI-P3 |
| Hard drive | 4TB SSD M.2 |
| RAM | 32GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3080 Ti 16GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W
| Reference / Part Number | 90NB0XC1-M000U0 |
|---|---|
| Release date | December 2022, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | Mineral Black |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 3840 x 2400 pixels |
| Touchscreen | No |
| HD type | WQUXGA |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 600 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 600 |
Processor
| Processor family | Intel® Core™ i9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i9-12900H |
| Processor frequency | 2,5 GHz |
| Generación del procesador | Intel Core i9-12xxx |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Processor cache | 24 MB |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 4 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 4 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 Ti |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
Audio
| Speakers manufacturer | Harman Kardon |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Número de puertos Thunderbolt 4 | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 0.2 " (6.0 mm) |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 90 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Power Delivery | Yes |
|---|---|
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,HDD,User |
Weight & dimensions
| Weight | 5.3 lbs (2,4 kg) |
|---|---|
| Width | 14.3 " (362 mm) |
| Depth | 10.4 " (264 mm) |
| Height (front) | 0.8 " (1,99 cm) |
| Height (rear) | 0.8 " (2,14 cm) |
Frequently asked questions
Is the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3080 Ti. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W like?
It carries a 16" 3840x2400 OLED 60Hz 600 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W have?
It runs on the Intel Core i9-12900H processor with the NVIDIA GeForce RTX 3080 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W weigh?
It weighs 2,4 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the ASUS ProArt StudioBook 16 OLED H7600ZX-L2023W released?
Its release date is December 2022, 3 years ago.
