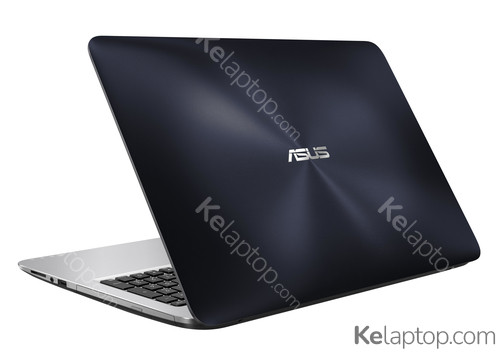

ASUS K556UQ-DM801D
Specs
Prices
Main specs
| Processor | Intel Core i7-7500U 2,7GHz |
|---|---|
| Screen | 15.6" 1920x1080 |
| Hard drive | 1TB HDD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | No OS installed |
| Graphics card | NVIDIA GeForce 940MX 2GB |
Alternatives with equal or better features at a better price
From ASUS
From other brands
Full specifications of ASUS K556UQ-DM801D
| Reference / Part Number | K556UQ-DM801D |
|---|---|
| Release date | April 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue,Stainless steel |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7500U |
| Processor frequency | 2,7 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,5 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,9 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 12 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | HDD |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® 940MX |
| On-board graphics card model | Intel® HD Graphics 620 |
| Discrete graphics card memory | 2 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | FreeDOS |
|---|
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR2ZV |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95451 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 38 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 2 |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS,HDD,User |
Weight & dimensions
| Weight | 2,3 kg |
|---|---|
| Width | 382 mm |
| Depth | 258 mm |
| Height | 25,5 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Frequently asked questions
Is the ASUS K556UQ-DM801D good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce 940MX. Its card's page shows what level it handles current games at.
What is the screen of the ASUS K556UQ-DM801D like?
It carries a 15.6" 1920x1080 display.
Which processor and graphics card does the ASUS K556UQ-DM801D have?
It runs on the Intel Core i7-7500U processor with the NVIDIA GeForce 940MX graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS K556UQ-DM801D be upgraded?
Yes: it has 1 memory slot and takes up to 12 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS K556UQ-DM801D come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the ASUS K556UQ-DM801D have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS K556UQ-DM801D have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS K556UQ-DM801D weigh?
It weighs 2,3 kg, a normal weight for its size: easy enough to move around.
When was the ASUS K556UQ-DM801D released?
Its release date is April 2017, 9 years ago.
