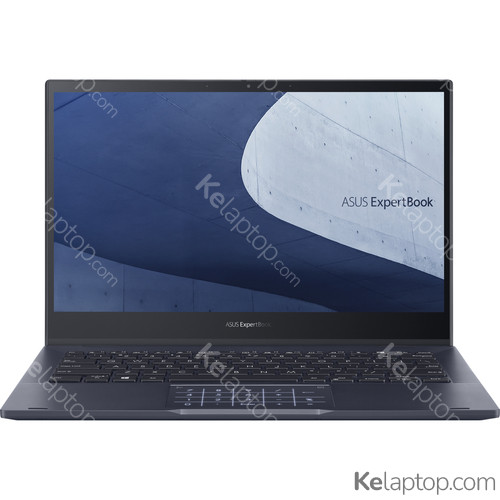

ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X
Specs
Prices
Main specs
| Processor | Intel Core i7-1165G7 2,8GHz |
|---|---|
| Screen | 13.3" 1920x1080 OLED 400 nits 100% DCI-P3 |
| Hard drive | 512GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X
| Reference / Part Number | 90NX03R1-M06870 |
|---|---|
| Release date | September 2022, 4 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Black |
| Form factor | Convertible (Folder) |
| Colour name | Star Black |
| Market positioning | Work |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | OLED |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 400 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1165G7 |
| Processor frequency | 2,8 GHz |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor boost frequency | 4,7 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 2,8 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,2 GHz |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 48 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
Audio
| Built-in microphone | Yes |
|---|
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.0b |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Micro HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 6.4 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 66 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD,User |
Weight & dimensions
| Weight | 1,3 kg |
|---|---|
| Width | 309 mm |
| Depth | 210,6 mm |
| Height | 16,9 mm |
Packaging content
| Stylus pen | Yes |
|---|---|
| Interface adapters included | Micro HDMI - Ethernet LAN (RJ-45) |
Frequently asked questions
Is the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X like?
It carries a 13.3" 1920x1080 OLED 400 nits 100% DCI-P3 display.
Which processor and graphics card does the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X have?
It runs on the Intel Core i7-1165G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X be upgraded?
Yes: it has 1 memory slot and takes up to 48 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X weigh?
It weighs 1,3 kg: one of the light ones, easy to carry every day.
When was the ASUS ExpertBook B5 Flip OLED B5302FEA-I716512B0X released?
Its release date is September 2022, 4 years ago.
