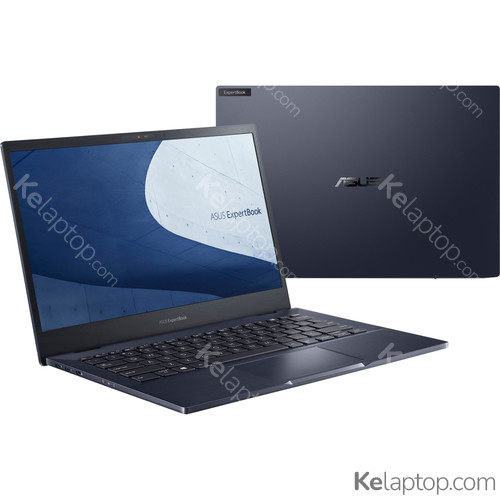

ASUS ExpertBook B5 B5302CBA-EG0506X
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 13.3" 1920x1080 IPS 60Hz 300 nits 100% sRGB |
| Hard drive | 256GB SSD M.2 |
| RAM | 16GB DDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS ExpertBook B5 B5302CBA-EG0506X
| Reference / Part Number | 90NX04W1-M00MB0 |
|---|---|
| Release date | April 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | Star Black |
| Housing material | Aluminum |
| Market positioning | Business |
| Año de introducción | 2022 |
Image gallery
Screen
| Display diagonal | 13.3 " (33,8 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB color space | sRGB |
| Color gamut | 100 % |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1235U |
| Generación del procesador | Intel Core i5-12xxx |
| Processor cores | 10 |
| Processor boost frequency | 4,4 GHz |
| Processor cache | 12 MB |
| Configurable TDP-down | 12 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 40 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Audio system | Smart Amp |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.0b |
| Número de puertos Thunderbolt 4 | 2 |
| Intel® Thunderbolt 4 | Yes |
| Micro HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 8.6 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 33 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 2 |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,HDD,User |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2.4 lbs (1,1 kg) |
|---|---|
| Width | 12.2 " (309 mm) |
| Depth | 8.3 " (210,6 mm) |
| Height | 0.7 " (16,9 mm) |
Packaging data
| Package width | 16.9 " (429 mm) |
|---|---|
| Package depth | 2.6 " (65 mm) |
| Package height | 10.6 " (270 mm) |
| Package weight | 5.6 lbs (2,53 kg) |
Frequently asked questions
Is the ASUS ExpertBook B5 B5302CBA-EG0506X good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ExpertBook B5 B5302CBA-EG0506X like?
It carries a 13.3" 1920x1080 IPS 60Hz 300 nits 100% sRGB display.
Which processor and graphics card does the ASUS ExpertBook B5 B5302CBA-EG0506X have?
It runs on the Intel Core i5-1235U processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ExpertBook B5 B5302CBA-EG0506X be upgraded?
Yes: it has 1 memory slot and takes up to 40 GB according to the manufacturer (it ships with 16GB).
Which operating system does the ASUS ExpertBook B5 B5302CBA-EG0506X come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the ASUS ExpertBook B5 B5302CBA-EG0506X have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the ASUS ExpertBook B5 B5302CBA-EG0506X have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS ExpertBook B5 B5302CBA-EG0506X made of?
Its housing is made of Aluminum.
How much does the ASUS ExpertBook B5 B5302CBA-EG0506X weigh?
It weighs 1,1 kg: one of the light ones, easy to carry every day.
When was the ASUS ExpertBook B5 B5302CBA-EG0506X released?
Its release date is April 2023, 3 years ago.
