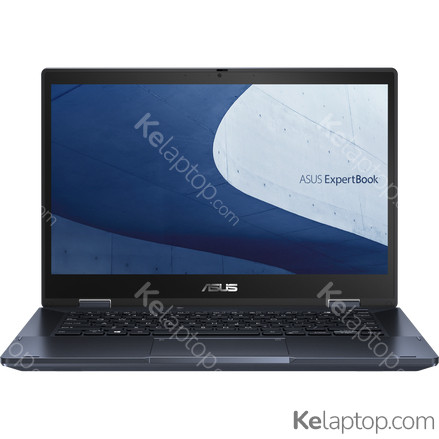

ASUS ExpertBook B3 Flip B3402FEA-XH74T
Specs
Prices
Main specs
| Processor | Intel Core i7-1165G7 2,8GHz |
|---|---|
| Screen | 14" 1920x1080 45% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
Full specifications of ASUS ExpertBook B3 Flip B3402FEA-XH74T
| Reference / Part Number | B3402FEA-XH74T |
|---|---|
| Release date | March 2022, 4 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Black |
| Form factor | Convertible (Folder) |
| Market positioning | Business |
| Rugged design | Yes |
| Built-in stylus pen storage | Yes |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Foldable display | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Gloss |
| Display diagonal (metric) | 35,5 cm |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1165G7 |
| Processor frequency | 2,8 GHz |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor boost frequency | 4,7 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2,8 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,2 GHz |
| Processor base power | 28 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 48 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | M.2,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card 4K support | Yes |
| On-board graphics card 6K support | Yes |
| Graphics card Open GL support | Yes |
Audio
| Built-in microphone | Yes |
|---|
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 13 MP |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 2 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
Performance
| Voice control | Yes |
|---|---|
| Repairability index | 6.6 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,User |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,61 kg |
|---|---|
| Width | 329 mm |
| Depth | 223,9 mm |
| Height | 19,5 mm |
Packaging content
| Stylus pen | Yes |
|---|
Frequently asked questions
Is the ASUS ExpertBook B3 Flip B3402FEA-XH74T good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ExpertBook B3 Flip B3402FEA-XH74T like?
It carries a 14" 1920x1080 45% NTSC display.
Which processor and graphics card does the ASUS ExpertBook B3 Flip B3402FEA-XH74T have?
It runs on the Intel Core i7-1165G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ExpertBook B3 Flip B3402FEA-XH74T be upgraded?
Yes: it has 1 memory slot and takes up to 48 GB according to the manufacturer (it ships with 16GB).
Which operating system does the ASUS ExpertBook B3 Flip B3402FEA-XH74T come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the ASUS ExpertBook B3 Flip B3402FEA-XH74T have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS ExpertBook B3 Flip B3402FEA-XH74T have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ExpertBook B3 Flip B3402FEA-XH74T have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the ASUS ExpertBook B3 Flip B3402FEA-XH74T weigh?
It weighs 1,61 kg, a normal weight for its size: easy enough to move around.
When was the ASUS ExpertBook B3 Flip B3402FEA-XH74T released?
Its release date is March 2022, 4 years ago.
