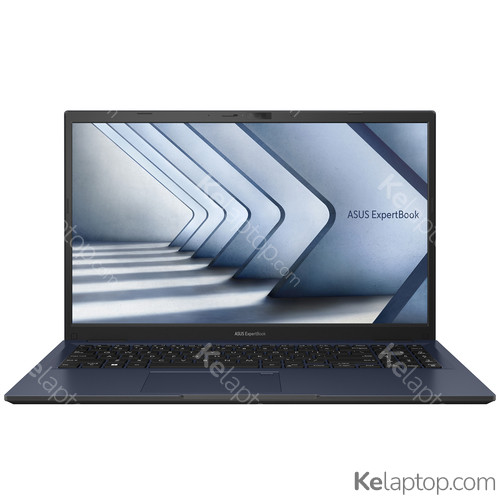

ASUS ExpertBook B1 B1502CBA-BQi5X
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 250 nits 45% NTSC |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS ExpertBook B1 B1502CBA-BQi5X
| Reference / Part Number | 90NX05U1-M009R0 |
|---|---|
| Release date | April 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Star Black |
| Housing material | Plastic |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 250 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1235U |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor cores | 10 |
| Processor boost frequency | 4,4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4,4 GHz |
| Efficient-core Max Turbo Frequency | 3,3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 12 W |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 40 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
Audio
| Audio system | Dirac |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Repairability index | 8.6 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 42 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Face recognition | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,HDD,User |
Certificates
| Compliance certificates | REACH,RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Gold,TCO |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Weight | 1,69 kg |
|---|---|
| Width | 361,6 mm |
| Depth | 233 mm |
| Height | 19,9 mm |
Frequently asked questions
Is the ASUS ExpertBook B1 B1502CBA-BQi5X good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS ExpertBook B1 B1502CBA-BQi5X like?
It carries a 15.6" 1920x1080 250 nits 45% NTSC display.
Which processor and graphics card does the ASUS ExpertBook B1 B1502CBA-BQi5X have?
It runs on the Intel Core i5-1235U processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS ExpertBook B1 B1502CBA-BQi5X be upgraded?
Yes: it has 1 memory slot and takes up to 40 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS ExpertBook B1 B1502CBA-BQi5X come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the ASUS ExpertBook B1 B1502CBA-BQi5X have?
According to its spec sheet: 2 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the ASUS ExpertBook B1 B1502CBA-BQi5X have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS ExpertBook B1 B1502CBA-BQi5X have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the ASUS ExpertBook B1 B1502CBA-BQi5X made of?
Its housing is made of Plastic.
How much does the ASUS ExpertBook B1 B1502CBA-BQi5X weigh?
It weighs 1,69 kg, a normal weight for its size: easy enough to move around.
When was the ASUS ExpertBook B1 B1502CBA-BQi5X released?
Its release date is April 2023, 3 years ago.
