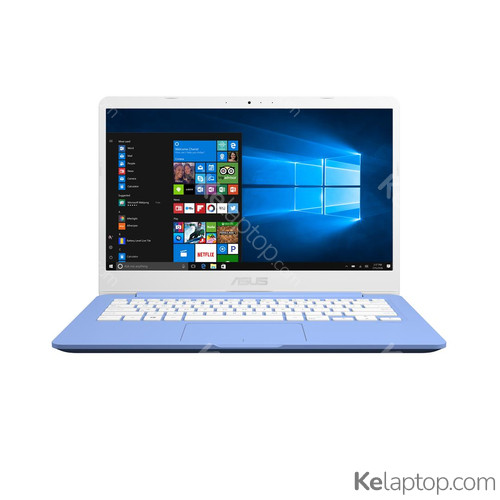

ASUS E406MA-BV202TS
Specs
Prices
Main specs
| Processor | Intel Celeron N3060 1,6GHz |
|---|---|
| Screen | 14" 1366x768 |
| Hard drive | 32GB eMMC |
| RAM | 4GB LPDDR4-SDRAM |
| Operating system | Windows 10 S |
| Graphics card | Intel HD Graphics 400 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS E406MA-BV202TS
| Reference / Part Number | E406MA-BV202TS |
|---|---|
| Release date | July 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor
| Processor family | Intel® Celeron® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N3060 |
| Processor frequency | 1,6 GHz |
| Processor boost frequency | 2,48 GHz |
| Processor threads | 2 |
| System bus rate | 5 GT/s |
| Processor cores | 2 |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Processor codename | Braswell |
| Stepping | D1 |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 4 GB |
| Internal memory type | LPDDR4-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 32 GB |
|---|---|
| Storage media | eMMC |
| Optical drive type | No |
| Flash memory | 32 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 400 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 600 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 12 |
| On-board graphics card DirectX version | 12.0 |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | No |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI port | No |
| Combo headphone/mic port | Yes |
| ExpressCard slot | No |
| SmartCard slot | No |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 S |
|---|
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel Smart Connect Technology | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 25 x 27 mm |
| Processor code | SR2KN |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Secure Boot | Yes |
| Intel Smart Connect Technology version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Rapid Storage Technology | No |
| Processor ARK ID | 91832 |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | No |
Battery
| Battery capacity | 56 Wh |
|---|---|
| Number of battery cells | 3 |
| Battery life (max) | 14 h |
Power
| AC adapter power | 33 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 1,75 A |
| AC adapter output voltage | 19 V |
Certificates
| Certification | UL, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, CB, Energy star, Erp 2013 |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,3 kg |
|---|---|
| Width | 326,4 mm |
| Depth | 226,5 mm |
| Height (front) | 1,58 cm |
| Height (rear) | 1,76 cm |
Packaging content
| Manual | Yes |
|---|
Frequently asked questions
Is the ASUS E406MA-BV202TS good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 400. Its card's page shows what level it handles current games at.
How long does the battery of the ASUS E406MA-BV202TS last?
The manufacturer declares up to 14 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the ASUS E406MA-BV202TS like?
It carries a 14" 1366x768 display.
Which processor and graphics card does the ASUS E406MA-BV202TS have?
It runs on the Intel Celeron N3060 processor with the Intel HD Graphics 400 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS E406MA-BV202TS come with?
It comes with Windows 10 S preinstalled.
Which ports does the ASUS E406MA-BV202TS have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS E406MA-BV202TS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS E406MA-BV202TS weigh?
It weighs 1,3 kg: one of the light ones, easy to carry every day.
When was the ASUS E406MA-BV202TS released?
Its release date is July 2018, 8 years ago.
