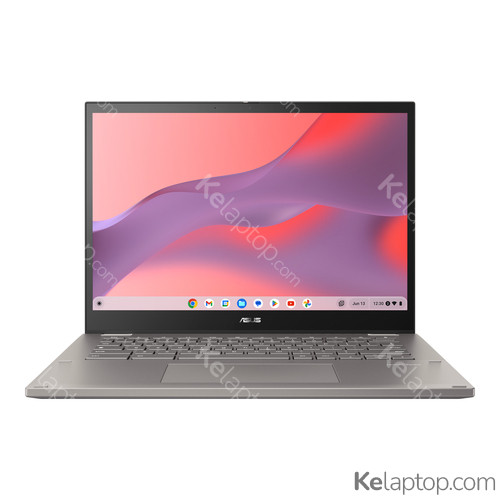

ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 1920x1200 300 nits 45% NTSC |
| Hard drive | 256GB SSD M.2 |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | ChromeOS |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S
| Reference / Part Number | 90NX05R1-M00520 |
|---|---|
| Release date | December 2025, 9 months ago |
Design
| Product type | Chromebook |
|---|---|
| Product colour | Grey |
| Form factor | Convertible (Folder) |
| Colour name | ZINC |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 300 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1235U |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4,4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4,4 GHz |
| Efficient-core Max Turbo Frequency | 3,3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Speakers manufacturer | Harman Kardon |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | ChromeOS |
|---|
Battery
| Battery capacity | 63 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3 A |
| AC adapter output voltage | 15 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Width | 319,5 mm |
|---|---|
| Depth | 234,9 mm |
| Height | 20,9 mm |
Packaging content
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S like?
It carries a 14" 1920x1200 300 nits 45% NTSC display.
Which processor and graphics card does the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S have?
It runs on the Intel Core i5-1235U processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S come with?
It comes with ChromeOS preinstalled.
Which ports does the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S have?
According to its spec sheet: 2 × USB-C, 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
When was the ASUS Chromebook CX34 Flip CX3401FBA-YZ566T-S released?
Its release date is December 2025, 9 months ago.
