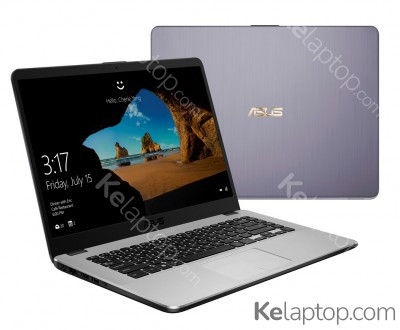

ASUS A505ZA-BR577R
Specs
Prices
Main specs
| Processor | AMD Ryzen 7 2700U 2,2GHz |
|---|---|
| Screen | 15.6" 1366x768 200 nits |
| Hard drive | 1TB HDD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | AMD Radeon RX Vega 10 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of ASUS A505ZA-BR577R
| Reference / Part Number | 90NB0I11-M08300 |
|---|---|
| Release date | May 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 200 cd/m² |
| Dual-screen | No |
| NTSC coverage (typical) | 45 % |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 2700U |
| Processor frequency | 2,2 GHz |
| Processor generation | AMD Ryzen 2000 Series |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,8 GHz |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor socket | Socket FP5 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | HDD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| HDD size | 2.5 " |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon RX Vega 10 |
| On-board graphics card family | AMD Radeon RX Vega Graphics |
Audio
| Audio system | SonicMaster |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery capacity | 42 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 1,6 kg |
|---|---|
| Width | 361,4 mm |
| Depth | 243,5 mm |
| Height | 18,9 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 16 GB |
|---|---|
| Memory upgrade note | Additional memory sold separately |
Frequently asked questions
Is the ASUS A505ZA-BR577R good for gaming?
This laptop was not built for gaming: it relies on the integrated AMD Radeon RX Vega 10. Its card's page shows what level it handles current games at.
What is the screen of the ASUS A505ZA-BR577R like?
It carries a 15.6" 1366x768 200 nits display.
Which processor and graphics card does the ASUS A505ZA-BR577R have?
It runs on the AMD Ryzen 7 2700U processor with the AMD Radeon RX Vega 10 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the ASUS A505ZA-BR577R be upgraded?
Yes: it has 1 memory slot and takes up to 16 GB according to the manufacturer (it ships with 8GB).
Which operating system does the ASUS A505ZA-BR577R come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the ASUS A505ZA-BR577R have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the ASUS A505ZA-BR577R have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the ASUS A505ZA-BR577R weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the ASUS A505ZA-BR577R released?
Its release date is May 2019, 7 years ago.
