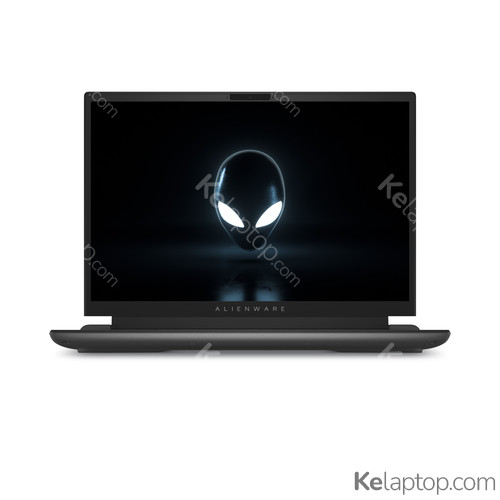

Alienware m16 R1 NAWM16R102
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 16" 2560x1600 WVA 240Hz 300 nits 100% DCI-P3 |
| Hard drive | 1TB SSD M.2 |
| RAM | 32GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 4070 8GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From Alienware
From other brands
Full specifications of Alienware m16 R1 NAWM16R102
| Reference / Part Number | NAWM16R102 |
|---|---|
| Release date | May 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Dark Metallic Moon |
Image gallery
Screen
| Display diagonal | 40,6 cm |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | Quad HD+ |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Pixel pitch | 0,13 x 0,13 mm |
| Pixel density | 188,7 ppi |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Display response rise/fall | 7 ms |
| Maximum refresh rate | 240 Hz |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-13700HX |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor cores | 16 |
| Processor boost frequency | 5 GHz |
| Efficient-core boost frequency | 3,7 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Configurable TDP-down | 45 W |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| NVIDIA G-SYNC | Yes |
Audio
| Audio chip | Realtek ALC3254 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2,07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Killer Wi-Fi 6E AX1690 |
| WLAN controller manufacturer | Killer |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Performance
| Motherboard chipset | Intel HM770 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 86 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Battery recharge time | 3 h |
| Fast charging | Yes |
| Battery weight | 340 g |
Power
| AC adapter power | 330 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 16,92 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Password protection | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 140 G |
| Operating vibration | 0,66 G |
Weight & dimensions
| Weight | 3,3 kg |
|---|---|
| Width | 368,9 mm |
| Depth | 289,9 mm |
| Height (front) | 2,31 cm |
| Height (rear) | 2,3 cm |
Frequently asked questions
Is the Alienware m16 R1 NAWM16R102 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 4070. Its card's page shows what level it handles current games at.
What is the screen of the Alienware m16 R1 NAWM16R102 like?
It carries a 16" 2560x1600 WVA 240Hz 300 nits 100% DCI-P3 display.
Which processor and graphics card does the Alienware m16 R1 NAWM16R102 have?
It runs on the Intel Core i7-13700HX processor with the NVIDIA GeForce RTX 4070 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Alienware m16 R1 NAWM16R102 be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the Alienware m16 R1 NAWM16R102 come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Alienware m16 R1 NAWM16R102 have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Alienware m16 R1 NAWM16R102 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Alienware m16 R1 NAWM16R102 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Alienware m16 R1 NAWM16R102 weigh?
It weighs 3,3 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Alienware m16 R1 NAWM16R102 released?
Its release date is May 2023, 3 years ago.
