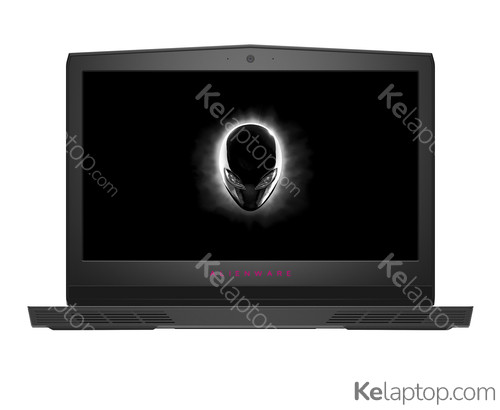

Alienware 17 R4 17R4-9548
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7820HK 2,9GHz |
|---|---|
| Screen | 17.3" 2560x1440 WVA 400 nits |
| Hard drive | 1,26TB HDD+SSD |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1080 8GB GDDR5X |
| Other | Keyboard UK English. |
Alternatives with equal or higher power at a similar or lower price
From Alienware
From other brands
Full specifications of Alienware 17 R4 17R4-9548
| Reference / Part Number | 17R4-9548 |
|---|---|
| Release date | August 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black,Silver |
| Form factor | Clamshell |
| Colour name | Epic Silver |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | No |
| HD type | Quad HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 400 cd/m² |
| Pixel pitch | 0,149 x 0,149 mm |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7820HK |
| Processor frequency | 2,9 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,9 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-7800 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8,2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1,26 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 2.5 " |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1080 |
| On-board graphics card model | Intel® HD Graphics 630 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5X |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card 4K support | Yes |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
| Number of discrete graphics cards supported | 1 |
| Number of discrete graphics cards installed | 1 |
| Graphics card Open GL support | Yes |
Audio
| Audio chip | Realtek ALC3266 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 4 W |
| Built-in subwoofer | Yes |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2,07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera signal format | 1080p |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Killer Wireless-AC 1535 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Alienware graphics amplifier port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Virtual Reality (VR) ready | Yes |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard layout | QWERTY |
| Keyboard language | UK English |
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | English |
| Trial software | McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial) |
| Bundled software | Financial Tracker & Retail Information |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97464 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 99 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
Power
| AC adapter power | 330 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 16,92 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Operating vibration | 0,26 G |
| Non-operating vibration | 1,37 G |
Weight & dimensions
| Weight | 4,42 kg |
|---|---|
| Width | 424 mm |
| Depth | 332 mm |
| Height | 29,9 mm |
Packaging data
| Package material | Corrugated cardboard,Low-density polyethylene (LDPE) |
|---|
Recycling data
| Corrugated cardboard content per package | 1,11 kg |
|---|---|
| Corrugated cardboard content per shipping (inner) case | 964 g |
| Corrugated cardboard content per box for accessories | 125 g |
| Corrugated cardboard content per sleeve for accessories | 19 g |
| Low-density polyethylene (LDPE) content per package | 16 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Logistics data
| Products per intermodal container (20ft) | 720 pc(s) |
|---|---|
| Products per intermodal container (40ft) | 1512 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 106,8 cm |
| Pallet gross weight | 278,5 kg |
| Pallet volume weight | 214 kg |
| Layers per pallet | 2 pc(s) |
| Products per pallet layer | 18 pc(s) |
| Products per pallet | 36 pc(s) |
| Shipping (inner) case width | 46,4 cm |
| Shipping (inner) case length | 51,7 cm |
| Shipping (inner) case height | 11,7 cm |
| Shipping (inner) case gross weight | 7,52 kg |
| Shipping (inner) case volume weight | 4,7 kg |
| Maximum number of stacking cartons | 4 pc(s) |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|---|
| EPEAT rating | 87,65 % |
Frequently asked questions
Is the Alienware 17 R4 17R4-9548 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1080. Its card's page shows what level it handles current games at.
What is the screen of the Alienware 17 R4 17R4-9548 like?
It carries a 17.3" 2560x1440 WVA 400 nits display.
Which processor and graphics card does the Alienware 17 R4 17R4-9548 have?
It runs on the Intel Core i7 i7-7820HK processor with the NVIDIA GeForce GTX 1080 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Alienware 17 R4 17R4-9548 be upgraded?
It has 2 memory slots, but it already ships with the maximum it takes (32 GB).
Which operating system does the Alienware 17 R4 17R4-9548 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Alienware 17 R4 17R4-9548 have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Alienware 17 R4 17R4-9548 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Alienware 17 R4 17R4-9548 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Alienware 17 R4 17R4-9548 weigh?
It weighs 4,42 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Alienware 17 R4 17R4-9548 released?
Its release date is August 2018, 8 years ago.
