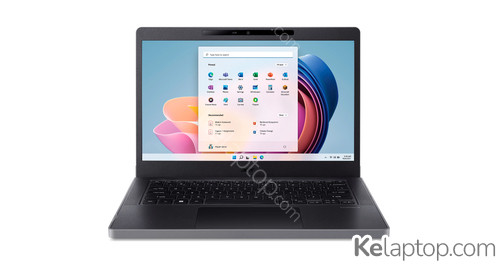

Acer TravelMate B5 TMB514-31-353R
Specs
Prices
Main specs
| Processor | Intel Core i3-N305 1,8GHz |
|---|---|
| Screen | 14" 1920x1080 LCD 60Hz |
| Hard drive | 256GB SSD |
| RAM | 8GB LPDDR5-SDRAM |
| Operating system | Windows 11 Pro Education |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Acer
Full specifications of Acer TravelMate B5 TMB514-31-353R
| Reference / Part Number | NX.VYJAA.001 |
|---|---|
| Release date | February 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | LCD |
| LED backlight | Yes |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i3 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i3-N305 |
| Processor frequency | 1,8 GHz |
| Processor generation | Intel Core i3-Nxxx |
| Processor boost frequency | 3,8 GHz |
| Processor cores | 8 |
| Processor cache | 6 MB |
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | LPDDR5-SDRAM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro Education |
|---|
Processor special features
| Intel Smart Connect Technology | No |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Secure Boot | Yes |
| Intel Smart Connect Technology version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Rapid Storage Technology | No |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | No |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Power
| AC adapter power | 45 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,Supervisor,User |
Certificates
| Certification | EPEAT Gold |
|---|
Weight & dimensions
| Weight | 1,65 kg |
|---|---|
| Width | 330,2 mm |
| Depth | 231,1 mm |
| Height | 24,3 mm |
| Height (front) | 2,16 cm |
| Height (rear) | 2,44 cm |
Frequently asked questions
Is the Acer TravelMate B5 TMB514-31-353R good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
What is the screen of the Acer TravelMate B5 TMB514-31-353R like?
It carries a 14" 1920x1080 LCD 60Hz display.
Which processor and graphics card does the Acer TravelMate B5 TMB514-31-353R have?
It runs on the Intel Core i3-N305 processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Acer TravelMate B5 TMB514-31-353R come with?
It comes with Windows 11 Pro Education preinstalled.
Which ports does the Acer TravelMate B5 TMB514-31-353R have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Acer TravelMate B5 TMB514-31-353R have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Acer TravelMate B5 TMB514-31-353R have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Acer TravelMate B5 TMB514-31-353R weigh?
It weighs 1,65 kg, a normal weight for its size: easy enough to move around.
When was the Acer TravelMate B5 TMB514-31-353R released?
Its release date is February 2023, 3 years ago.
