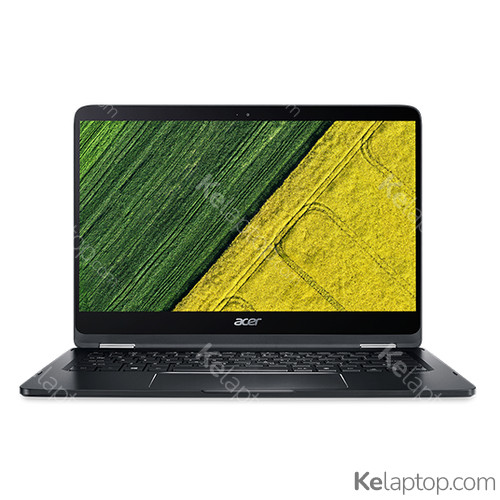

Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7Y75 1,3GHz |
|---|---|
| Screen | 14" 1920x1080 IPS |
| Hard drive | 256GB SSD |
| RAM | 8GB LPDDR3-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | Intel HD Graphics 615 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ
| Reference / Part Number | 714-51-M8SQ |
|---|---|
| Also sold as | NX.GKPST.003 |
| Release date | January 2017, 9 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Black |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7Y75 |
| Processor frequency | 1,3 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor boost frequency | 3,6 GHz |
| Processor threads | 4 |
| System bus rate | 4 GT/s |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1515 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 4,5 W |
| Configurable TDP-up frequency | 1,6 GHz |
| Configurable TDP-up | 7 W |
| Configurable TDP-down | 3,5 W |
| Configurable TDP-down frequency | 0,6 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | LPDDR3-SDRAM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA II |
| Card reader integrated | Yes |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 615 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591E |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
|---|---|
| DVI port | No |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| Charging port type | DC-in jack |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 20.5 X 16.5 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95441 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 2770 mAh |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
Weight & dimensions
| Weight | 1,6 kg |
|---|---|
| Width | 324,6 mm |
| Depth | 229,6 mm |
| Height | 10,1 mm |
| Height (front) | 1,1 cm |
| Height (rear) | 1,1 cm |
Packaging content
| Cables included | AC |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| AC adapter included | Yes |
|---|---|
| 3D | No |
Frequently asked questions
Is the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 615. Its card's page shows what level it handles current games at.
What is the screen of the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ like?
It carries a 14" 1920x1080 IPS display.
Which processor and graphics card does the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ have?
It runs on the Intel Core i7 i7-7Y75 processor with the Intel HD Graphics 615 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ have?
According to its spec sheet: 2 × USB-C, card reader, headphone jack (3.5 mm).
Does the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the Acer Spin 7 SP714-51-M8SQ 714-51-M8SQ released?
Its release date is January 2017, 9 years ago.
