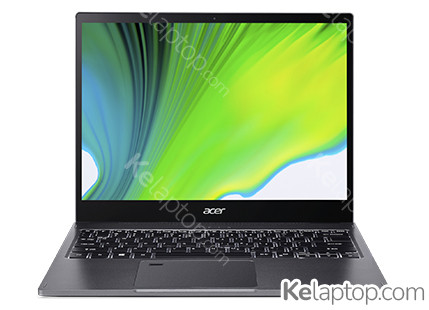

Acer Spin 5 SP513-54N-74V2
Specs
Prices
Main specs
| Processor | Intel Core i7-1065G7 1,3GHz |
|---|---|
| Screen | 13.5" 2256x1504 IPS |
| Hard drive | 512GB SSD |
| RAM | 16GB LPDDR4x-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Acer
From other brands
Full specifications of Acer Spin 5 SP513-54N-74V2
| Reference / Part Number | NX.HQUAA.006 |
|---|---|
| Release date | June 2020, 6 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Gray |
| Form factor | Convertible (Folder) |
| Color name | Steel Gray |
| Housing material | Aluminium,Magnesium |
Image gallery
Screen
| Display diagonal | 13.5 " (34,3 cm) |
|---|---|
| Display resolution | 2256 x 1504 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Panel type | IPS |
| HD type | 2K Ultra HD |
| LED backlight | Yes |
| Native aspect ratio | 3:2 |
| Display glass type | Gorilla Glass |
Processor
| Processor family | 10th gen Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1065G7 |
| Processor frequency | 1,3 GHz |
| Processor boost frequency | 3,9 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1526 |
| Processor lithography | 10 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1,5 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1 GHz |
| Tjunction | 100 °C |
| PCI Express slots version | 3.0 |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | LPDDR4x-SDRAM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Plus Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x8A52 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Ethernet LAN | No |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
|---|---|
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 50 x 25 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0,AVX-512 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 196597 |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 4 |
| Battery life (max) | 15 h |
Power
| AC adapter power | 65 W |
|---|
Security
| Fingerprint reader | Yes |
|---|
Weight & dimensions
| Weight | 2.6 lbs (1,2 kg) |
|---|---|
| Width | 11.8 " (300 mm) |
| Depth | 9.3 " (235 mm) |
| Height | 0.6 " (14,9 mm) |
Frequently asked questions
Is the Acer Spin 5 SP513-54N-74V2 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Plus Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Acer Spin 5 SP513-54N-74V2 last?
The manufacturer declares up to 15 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Acer Spin 5 SP513-54N-74V2 like?
It carries a 13.5" 2256x1504 IPS display.
Which processor and graphics card does the Acer Spin 5 SP513-54N-74V2 have?
It runs on the Intel Core i7-1065G7 processor with the Intel Iris Plus Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Acer Spin 5 SP513-54N-74V2 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Acer Spin 5 SP513-54N-74V2 have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Acer Spin 5 SP513-54N-74V2 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Acer Spin 5 SP513-54N-74V2 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the Acer Spin 5 SP513-54N-74V2 made of?
Its housing is made of Aluminium,Magnesium.
How much does the Acer Spin 5 SP513-54N-74V2 weigh?
It weighs 1,2 kg: one of the light ones, easy to carry every day.
When was the Acer Spin 5 SP513-54N-74V2 released?
Its release date is June 2020, 6 years ago.
