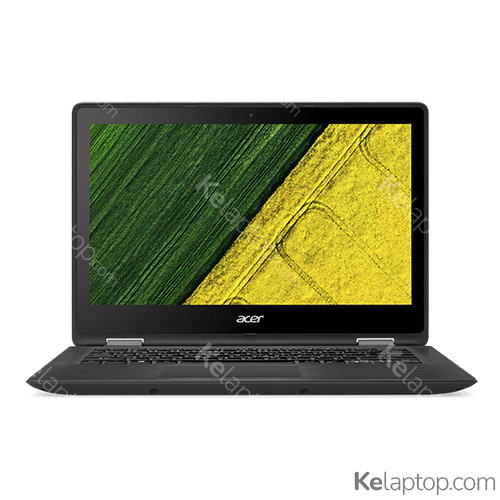

Acer Spin 5 SP513-51-31X1
Specs
Prices
Main specs
| Processor | Intel Core i3-6006U 2GHz |
|---|---|
| Screen | 13.3" 1920x1080 IPS |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | Intel HD Graphics 520 |
Alternatives with equal or higher power at a similar or lower price
From Acer
From other brands
Full specifications of Acer Spin 5 SP513-51-31X1
| Reference / Part Number | NX.GK4ED.015 |
|---|---|
| Release date | March 2017, 9 years ago |
Design
| Product color | Black |
|---|---|
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 13.3 " (33,8 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Panel type | IPS |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| LED backlight | Yes |
Processor
| Processor family | 6th gen Intel® Core™ i3 |
|---|---|
| Processor model | i3-6006U |
| Processor frequency | 2,00 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| System bus rate | 4 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-6000 Mobile Processor Series |
| Processor codename | Skylake |
| Bus type | OPI |
| Stepping | D1 |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Card reader integrated | Yes |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Intel® HD Graphics 520 |
| Discrete graphics card model | Not available |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1916 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
Network
| Bluetooth | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | No |
| Wi-Fi | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| Charging port type | DC-in jack |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SSSR2UW |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 91157 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 3220 mAh |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
Security
| Fingerprint reader | No |
|---|
Weight & dimensions
| Weight | 3.5 lbs (1,6 kg) |
|---|---|
| Width | 12.9 " (328,8 mm) |
| Depth | 9 " (228,5 mm) |
| Height | 0.8 " (19,7 mm) |
| Height (front) | 0.8 " (1,97 cm) |
| Height (rear) | 0.8 " (1,97 cm) |
Packaging content
| Manual | Yes |
|---|---|
| Power cord included | Yes |
Other features
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the Acer Spin 5 SP513-51-31X1 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 520. Its card's page shows what level it handles current games at.
What is the screen of the Acer Spin 5 SP513-51-31X1 like?
It carries a 13.3" 1920x1080 IPS display.
Which processor and graphics card does the Acer Spin 5 SP513-51-31X1 have?
It runs on the Intel Core i3-6006U processor with the Intel HD Graphics 520 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Acer Spin 5 SP513-51-31X1 be upgraded?
Yes: it has 1 memory slot and takes up to 16 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Acer Spin 5 SP513-51-31X1 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Acer Spin 5 SP513-51-31X1 have?
According to its spec sheet: 1 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Acer Spin 5 SP513-51-31X1 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Acer Spin 5 SP513-51-31X1 weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the Acer Spin 5 SP513-51-31X1 released?
Its release date is March 2017, 9 years ago.
