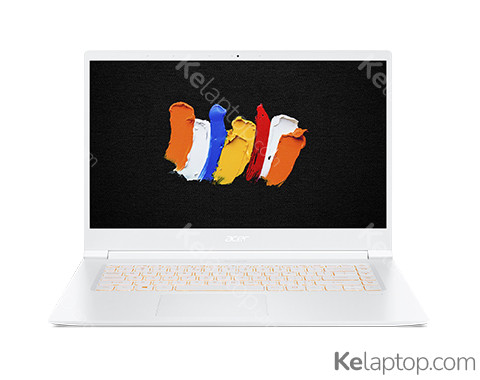

Acer ConceptD 5 CN515-51-70R8
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8705G 3,1GHz |
|---|---|
| Screen | 15.6" 3840x2160 IPS |
| Hard drive | 1TB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | AMD Radeon RX Vega M GL |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Acer ConceptD 5 CN515-51-70R8
| Reference / Part Number | NX.C4JSI.004 |
|---|---|
| Release date | February 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | White |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Aspect ratio | 16:9 |
| LED backlight | Yes |
Processor
| Processor family | 8th gen Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8705G |
| Processor frequency | 3,1 GHz |
| Processor cores | 4 |
| Processor boost frequency | 4,1 GHz |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor socket | BGA 2270 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake G |
| Bus type | DMI |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 8 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 2x4 |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
Storage
| Total storage capacity | 1024 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Card reader integrated | No |
| Total SSDs capacity | 1024 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 512 GB |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon RX Vega M GL |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
Network
| Bluetooth | Yes |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Antenna type | 2x2 |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 31 x 58.5 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 130411 |
Battery
| Battery capacity | 48 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 3220 mAh |
| Battery life (max) | 7 h |
Power
| AC adapter power | 90 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD,Supervisor,User |
Weight & dimensions
| Weight | 3.3 lbs (1,5 kg) |
|---|---|
| Width | 14.2 " (360 mm) |
| Depth | 9.5 " (242 mm) |
| Height | 0.7 " (16,9 mm) |
Other features
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the Acer ConceptD 5 CN515-51-70R8 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated AMD Radeon RX Vega M GL. Its card's page shows what level it handles current games at.
How long does the battery of the Acer ConceptD 5 CN515-51-70R8 last?
The manufacturer declares up to 7 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Acer ConceptD 5 CN515-51-70R8 like?
It carries a 15.6" 3840x2160 IPS display.
Which processor and graphics card does the Acer ConceptD 5 CN515-51-70R8 have?
It runs on the Intel Core i7 i7-8705G processor with the AMD Radeon RX Vega M GL graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Acer ConceptD 5 CN515-51-70R8 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Acer ConceptD 5 CN515-51-70R8 have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, headphone jack (3.5 mm).
Does the Acer ConceptD 5 CN515-51-70R8 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Acer ConceptD 5 CN515-51-70R8 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Acer ConceptD 5 CN515-51-70R8 weigh?
It weighs 1,5 kg: one of the light ones, easy to carry every day.
When was the Acer ConceptD 5 CN515-51-70R8 released?
Its release date is February 2020, 6 years ago.
