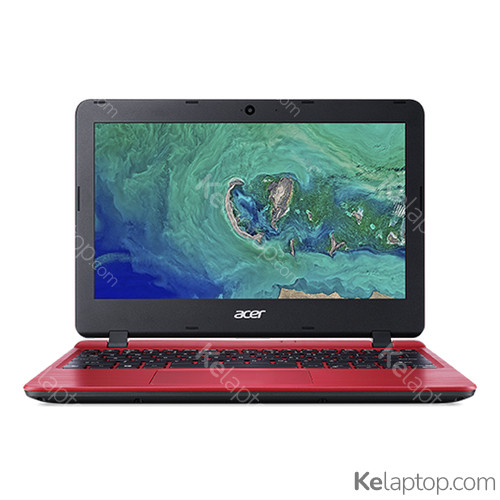

Acer Aspire NTB 1
Specs
Prices
Main specs
| Processor | Intel Celeron N4000 1,1GHz |
|---|---|
| Screen | 11.6" 1366x768 LCD |
| Hard drive | 64GB Flash |
| RAM | 4GB DDR4-SDRAM |
| Operating system | Windows 10 Home in S mode |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Acer
From other brands
Full specifications of Acer Aspire NTB 1
| Reference / Part Number | NX.GX9EC.001 |
|---|---|
| Release date | May 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Red |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 29,5 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| HD type | HD |
| Panel type | LCD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Processor family | Intel® Celeron® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N4000 |
| Processor frequency | 1,1 GHz |
| Processor boost frequency | 2,6 GHz |
| Processor threads | 2 |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Processor socket | BGA 1090 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Gemini Lake |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4,8 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2,1x2+2x1,1x4,2x1,4x1 |
Memory
| Internal memory | 4 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
Storage
| Total storage capacity | 64 GB |
|---|---|
| Storage media | Flash |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Intel® UHD Graphics 600 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 650 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 12 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3185 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,3 MP |
| Front camera resolution | 640 x 480 pixels |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|
Software
| Operating system installed | Windows 10 Home in S mode |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Anti-Theft Technology (Intel® AT) | No |
|---|---|
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 25 x 24 mm |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 128988 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 37 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 2 |
| Battery capacity | 4810 mAh |
| Battery life (max) | 10 h |
Power
| AC adapter power | 45 W |
|---|
Security
| Fingerprint reader | No |
|---|
Weight & dimensions
| Weight | 1,25 kg |
|---|---|
| Width | 291 mm |
| Depth | 211 mm |
| Height | 21 mm |
Other features
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the Acer Aspire NTB 1 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 600. Its card's page shows what level it handles current games at.
How long does the battery of the Acer Aspire NTB 1 last?
The manufacturer declares up to 10 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Acer Aspire NTB 1 like?
It carries a 11.6" 1366x768 LCD display.
Which processor and graphics card does the Acer Aspire NTB 1 have?
It runs on the Intel Celeron N4000 processor with the Intel UHD Graphics 600 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Acer Aspire NTB 1 come with?
It comes with Windows 10 Home in S mode preinstalled.
Which ports does the Acer Aspire NTB 1 have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
How much does the Acer Aspire NTB 1 weigh?
It weighs 1,25 kg: one of the light ones, easy to carry every day.
When was the Acer Aspire NTB 1 released?
Its release date is May 2019, 7 years ago.
