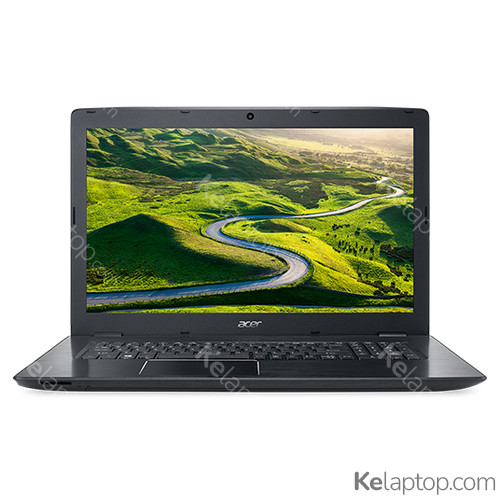

Acer Aspire E E5-774G-52XT
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-7200U 2,5GHz |
|---|---|
| Screen | 17.3" 1600x900 |
| Hard drive | 628GB HDD+SSD |
| RAM | 12GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce 940MX 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From Acer
Full specifications of Acer Aspire E E5-774G-52XT
| Reference / Part Number | NX.GG7EH.035 |
|---|---|
| Release date | May 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1600 x 900 pixels |
| Touchscreen | No |
| HD type | HD+ |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-7200U |
| Processor frequency | 2,5 GHz |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor boost frequency | 3,1 GHz |
| Processor threads | 4 |
| System bus rate | 4 GT/s |
| Processor cores | 2 |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,7 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 12 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 628 GB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® 940MX |
| On-board graphics card model | Intel® HD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards installed | 1 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| Charging port type | DC-in jack |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR2ZU |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95443 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 2800 mAh |
| Battery life (max) | 5,5 h |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Fingerprint reader | No |
|---|
Weight & dimensions
| Weight | 3,3 kg |
|---|---|
| Width | 423,3 mm |
| Depth | 281,9 mm |
| Height | 33,1 mm |
| Height (front) | 2,76 cm |
| Height (rear) | 3,31 cm |
Packaging content
| Cables included | AC |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| AC adapter included | Yes |
|---|---|
| 3D | No |
Frequently asked questions
Is the Acer Aspire E E5-774G-52XT good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce 940MX. Its card's page shows what level it handles current games at.
How long does the battery of the Acer Aspire E E5-774G-52XT last?
The manufacturer declares up to 5,5 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Acer Aspire E E5-774G-52XT like?
It carries a 17.3" 1600x900 display.
Which processor and graphics card does the Acer Aspire E E5-774G-52XT have?
It runs on the Intel Core i5 i5-7200U processor with the NVIDIA GeForce 940MX graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Acer Aspire E E5-774G-52XT be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 12GB).
Which operating system does the Acer Aspire E E5-774G-52XT come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Acer Aspire E E5-774G-52XT have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Acer Aspire E E5-774G-52XT have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Acer Aspire E E5-774G-52XT weigh?
It weighs 3,3 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Acer Aspire E E5-774G-52XT released?
Its release date is May 2017, 9 years ago.
