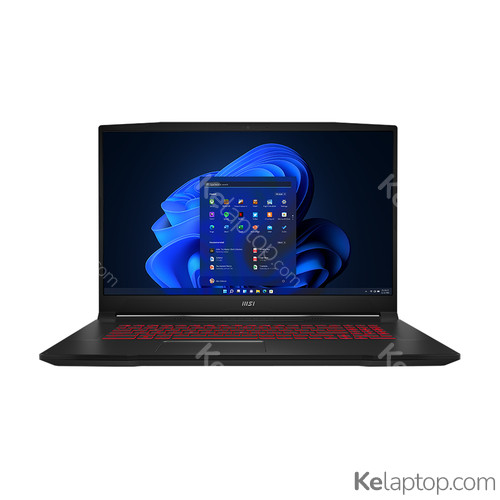

MSI Katana GF76 KATANAGF76026
Price and specs
Main specs
| Processor | |
|---|---|
| Screen | 17.3" 1920x1080 IPS 144Hz |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3060 6GB GDDR6 |
Prices
Full specifications
Reference
KATANAGF76026
Release date
02-2022, 2 years ago
Design
Product type
Laptop
Product color
Black
Form factor
Clamshell
Market positioning
Gaming
Display
Display diagonal
17.3 " (43,9 cm)
Display resolution
1920 x 1080 pixels
Touchscreen
No
HD type
Full HD
Panel type
IPS
Native aspect ratio
16:9
Color gamut
45 %
Maximum refresh rate
144 Hz
Processor
Processor family
Intel® Core™ i7
Processor manufacturer
Intel
Processor model
i7-12700H
Generación del procesador
Intel Core i7-12xxx
Processor boost frequency
4,7 GHz
Processor cores
14
Processor cache
24 MB
Configurable TDP-down
35 W
Memory
Internal memory
16 GB
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Memory form factor
SO-DIMM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Storage
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
NVMe
NVMe
Yes
Card reader integrated
No
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete graphics card model
NVIDIA GeForce RTX 3060
On-board graphics card model
Intel Iris Xe Graphics
Discrete GPU manufacturer
NVIDIA
On-board graphics card family
Intel Iris Xe Graphics
Discrete graphics card memory
6 GB
Discrete graphics memory type
GDDR6
NVIDIA Max-Q
Yes
Audio
Audio system
NAHIMIC 3
Number of built-in speakers
2
Speaker power
2 W
Camera
Front camera
Yes
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Antenna type
2x2
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.2
Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Performance
Virtual Reality (VR) ready
No
Keyboard
Numeric keypad
Yes
Pointing device
Touchpad
Keyboard layout
QWERTY
Keyboard language
English
Keyboard backlit
Yes
Keyboard backlit color
Red
Full-size keyboard
Yes
Keyboard number of keys
99
Software
Operating system installed
Windows 11 Home
Processor special features
Intel Flex Memory Access
Yes
Intel Trusted Execution Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Execute Disable Bit
Yes
CPU configuration (max)
1
Embedded options available
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Battery
Battery capacity
53 Wh
Number of battery cells
3
Power
AC adapter power
240 W
Weight & dimensions
Weight
5.7 lbs (2,6 kg)
Width
15.7 " (398 mm)
Depth
10.7 " (273 mm)
Height
1 " (25,1 mm)
