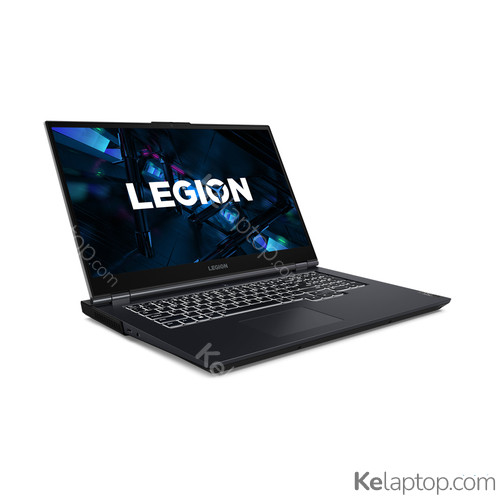

Lenovo Legion 5 82JM0024US

Lenovo Legion 5 82JM0024US
Price and specs

Processor

Intel Core i7-11800H 2,3GHz

Screen 17.3" 1920x1080 IPS
Hard drive 512GB SSD
RAM 16GB DDR4-SDRAM
Operating system Windows 11 Home
Graphics card NVIDIA GeForce RTX 3060

Reference

82JM0024US

Release date

10-2021, 8 months ago

Product type

Notebook

Product color

Black,Blue

Form factor

Clamshell

Display diagonal

17.3 " (43,9 cm)

Display resolution

1920 x 1080 pixels

Touchscreen

No

HD type

Full HD

Panel type

IPS

LED backlight

Yes

Native aspect ratio

16:9

Anti-glare screen

Yes

Display brightness

300 cd/m²

RGB color space

NTSC

Color gamut

72 %

Maximum refresh rate

144 Hz

Contrast ratio (typical)

800:1

High Dynamic Range (HDR) technology

Dolby Vision

Processor family

11th gen Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-11800H

Processor frequency

2,3 GHz

Processor boost frequency

4,6 GHz

Processor cores

8

Processor cache

24 MB

Internal memory

16 GB

Maximum internal memory

16 GB

Internal memory type

DDR4-SDRAM

Memory clock speed

3200 MHz

Memory form factor

SO-DIMM

Memory slots

2x SO-DIMM

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

NVMe,PCI Express 3.0

SSD form factor

M.2

Card reader integrated

Yes

Compatible memory cards

MMC,SD

On-board graphics card

Yes

Discrete graphics card

Yes

Discrete graphics card model

NVIDIA GeForce RTX 3060

On-board graphics card model

Intel® UHD Graphics

Discrete GPU manufacturer

NVIDIA

Discrete graphics card memory

6 GB

Discrete graphics memory type

GDDR6

Audio chip

Realtek ALC3306

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Front camera

Yes

Front camera HD type

HD

Privacy camera

Yes

Privacy type

Privacy shutter

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

1000 Mbit/s

Bluetooth version

5.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

USB4 Gen 3×2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

HDMI version

2.1

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

USB Sleep-and-Charge

Yes

USB Sleep-and-Charge ports

1

Numeric keypad

Yes

Pointing device

Touchpad

Keyboard language

US English

Keyboard backlit

Yes

Keyboard backlit color

White

Operating system installed

Windows 11 Home

Operating system architecture

64-bit

Operating system language

English

Battery capacity (Watt-hours)

80 Wh

Battery technology

Lithium Polymer (LiPo)

Battery life (max)

7,9 h

Fast charging

Yes

AC adapter power

300 W

Fingerprint reader

No

Smart card reader

No

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection type

HDD,Power on,Supervisor

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Maximum shipping altitude

3048 m

Certification

ErP Lot 3 RoHS compliant

Weight

6.6 lbs (2,98 kg)

Width

15.7 " (398,6 mm)

Depth

11.4 " (290 mm)

Height (front)

1 " (2,43 cm)

Height (rear)

1 " (2,62 cm)
